Echo PAS-211 Pro Attachment Series

Model: PAS-211

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

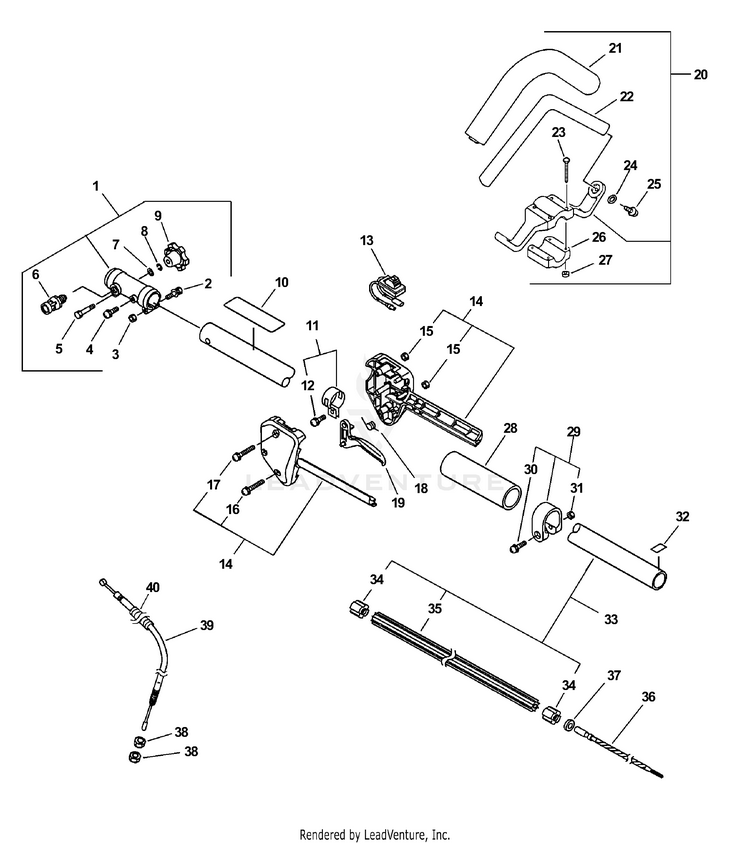

Driveshaft, Coupling, Handles, Throttle, Stop Switch

...
...
1
COUPLER ASSY Includes ITEM 2-9 ECH-61060156732
...
2
BOLT 5x30 ECH-90014205030
...
3
NUT M5 ECH-90050000005
...
4
SCREW 5x12 ECH-90024205012
...
5
BOLT 5x35 SP ECH-90010005035
...
6
LATCH ASSY ECH-17830256630
...
7
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
8
WASHER, SPRING 5 ECH-90060500005
...
9
KNOB ECH-V299000100
...
10
LABEL - CAUTION ECH-89022809560
...
11
CLAMP KIT Includes ITEM 12 ECH-30120029431
...
12
SCREW 5x14 ECH-90024205014
...
13
SWITCH ASSY, ON-OFF ECH-16340155631
...
14
HANDLE KIT, CONTROL Includes ITEM 15-17 ECH-17800352130
...
15
NUT M5 ECH-90050000005
...
16
SCREW 5x25 ECH-90024205025
...
17
SCREW 5x35 ECH-90024205035
...
18
SPRING, TORSION ECH-17804342230
...
19
TRIGGER, THROTTLE ECH-17801052130
...
20
HANDLE ASSY, FRONT INCLUDES ITEM 21-27 ECH-P021000000
...
21
GRIP, HANDLE ECH-35121666230
...
22
HANDLE, SUPPORT ECH-35120566230
...
23
SCREW 5x35 ECH-90024205035
...
24
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
25
SCREW 5 ECH-88995021060
...
26
BRACKET, HANDLE ECH-C423000300
...
27
NUT M5 ECH-90050000005
...
28
GRIP, HANDLE ECH-35121352130
...
29
CLAMP KIT INCLUDES ITEMS 30 & 31 ECH-61027252130
...
30
SCREW 5x28 ECH-90024205028
...
31
NUT M5 ECH-90050000005
...
32
LABEL - ALIGNMENT ECH-89015204930
...
33
MAIN PIPE ASSY INCLUDES ITEM 34 & 35 ECH-C050001240
...
34
STOPPER ECH-61024644730
...
35
LINER - FLEXIBLE ECH-C507000480
...
36
DRIVESHAFT - FLEXIBLE ECH-61001355630
...
37
CUSHION ECH-10025156630
...
38
NUT M6 ECH-90050200006
...
39
CABLE, THROTTLE ECH-17800156730
...
40
PIPE ECH-17812750330
...
...
...
...
...
