Echo PAS-211 Pro Attachment Series

Model: PAS-211

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

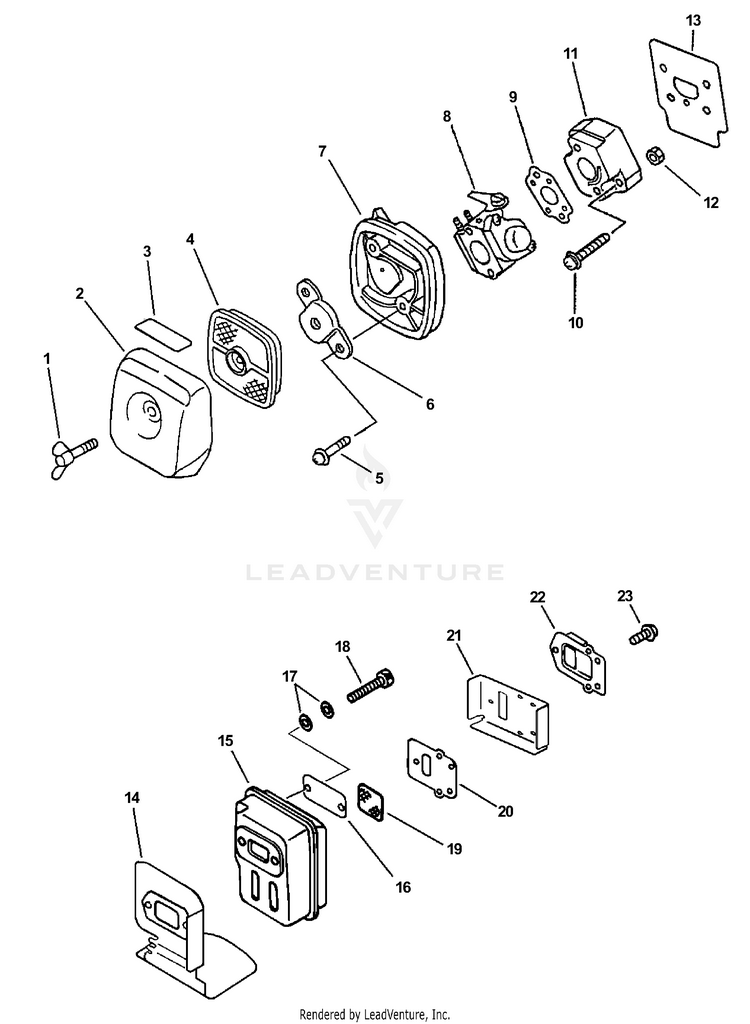

Intake, Exhaust

...
...
1
BOLT, WING 5x20 ECH-21041752730
...
2
COVER, AIR FILTER - GRAY ECH-13031306563
...
3
LABEL - CHOKE ECH-89012106360
...
4
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
5
SCREW 5x65 ECH-90024205065
...
6
PLATE, PREVENT ECH-12901152730
...
7
CASE, AIR FILTER - GRAY ECH-P021001500
...
8
CARBURETOR C1U-K58 ECH-A021000113
...
9
GASKET, INTAKE Included In GASKET KIT ECH-13001642031
...
10
SCREW 5x20 ECH-90023805020
...
11
INSULATOR, INTAKE ECH-13001742031
...
12
NUT M5 ECH-90050000005
...
13
HEAT SHIELD, INTAKE Included In GASKET KIT ECH-V103001360
...
14
HEAT SHIELD, EXHAUST Included In GASKET KIT ECH-V104000101
...
15
MUFFLER ECH-A300000811
...
16
PLATE, EYE ECH-V150000371
...
17
CONICAL WASHER ECH-V347000000
...
18
BOLT 5x55 ECH-90010505055
...
19
SCREEN, SPARK ARRESTER ECH-14586240630
...
20
GASKET, EXHAUST Included In GASKET KIT ECH-V104000033
...
21
GASKET, EXHAUST Included In GASKET KIT ECH-V104000012
...
22
GUIDE, EXHAUST ECH-A313000130
...
23
SCREW 4x10 ECH-9136704010
...
...
...
...
...
