Echo PAS-211 Pro Attachment Series

Model: PAS-211

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

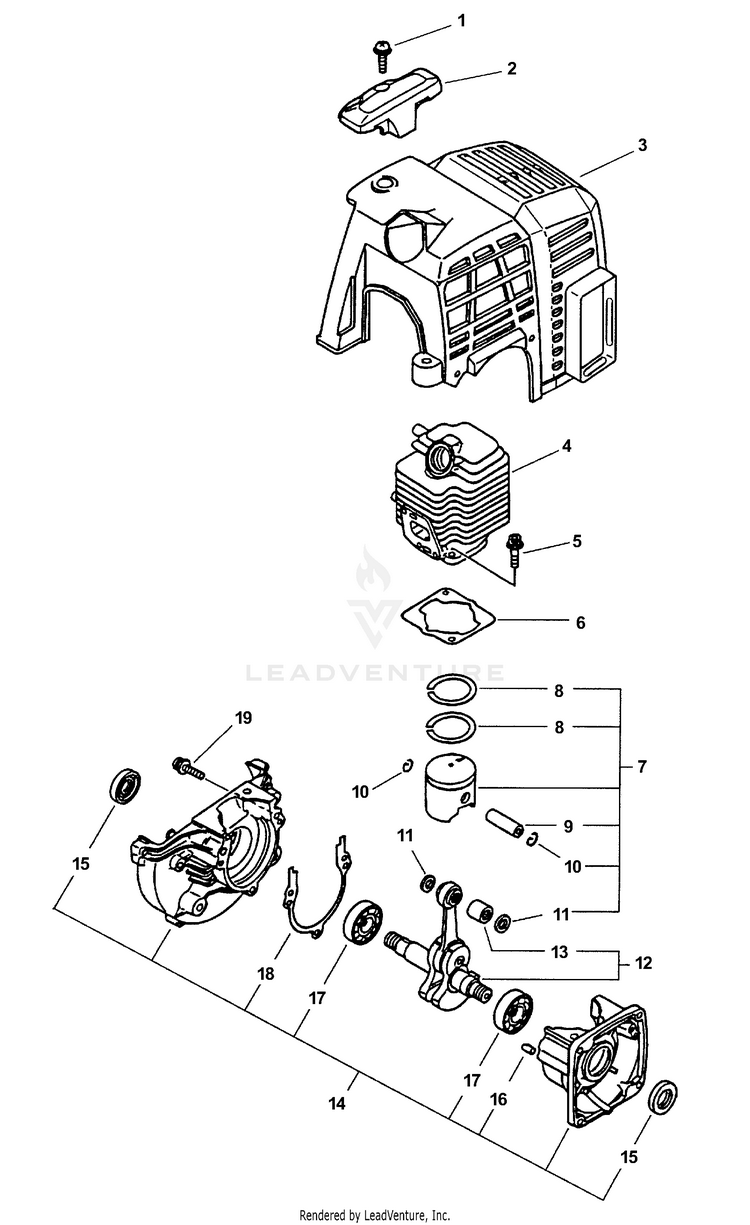

Crankcase, Cylinder Cover, Engine

...
...
1
SCREW 5x16 ECH-90023805016
...
2
GUARD, TOP ECH-15991254130
...
3
COVER, ENGINE ECH-A160000181
...
4
CYLINDER ECH-A130000101
...
5
BOLT 4x16 ECH-V202000830
...
6
GASKET, CYLINDER Included In GASKET KIT ECH-V100000020
...
7
PISTON KIT INCLUDES ITEMS 8-11 ECH-P021001102
...
8
RING, PISTON ECH-A101000000
...
9
PIN, PISTON 8 ECH-10001311520
...
10
RING, SNAP ECH-10001504630
...
11
WASHER, THRUST ECH-10001411520
...
12
CRANKSHAFT ASSY USE P/N SB1048 INCLUDES ITEM 13 ECH---
...
13
BEARING, NEEDLE 8 ECH-V553000010
...
14
CRANKCASE KIT USE P/N SB1048 INCLUDES ITEMS 15-18 ECH---
...
15
SEAL, OIL 12 ECH-10021242031
...
16
PIN, LOCATING 4 ECH-V622000020
...
17
BEARING, BALL 6201 ECH-9403536201
...
18
GASKET, CRANKCASE Included In GASKET KIT ECH---
...
19
BOLT 5x28 ECH-90016205028
...
xx
SHORT BLOCK INCLUDES ITEMS 4-15 ECH-SB1048
...
...
...
...
...
