Echo PAS-2000 Type 1E Pro Attachment Series

Model: PAS-2000 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

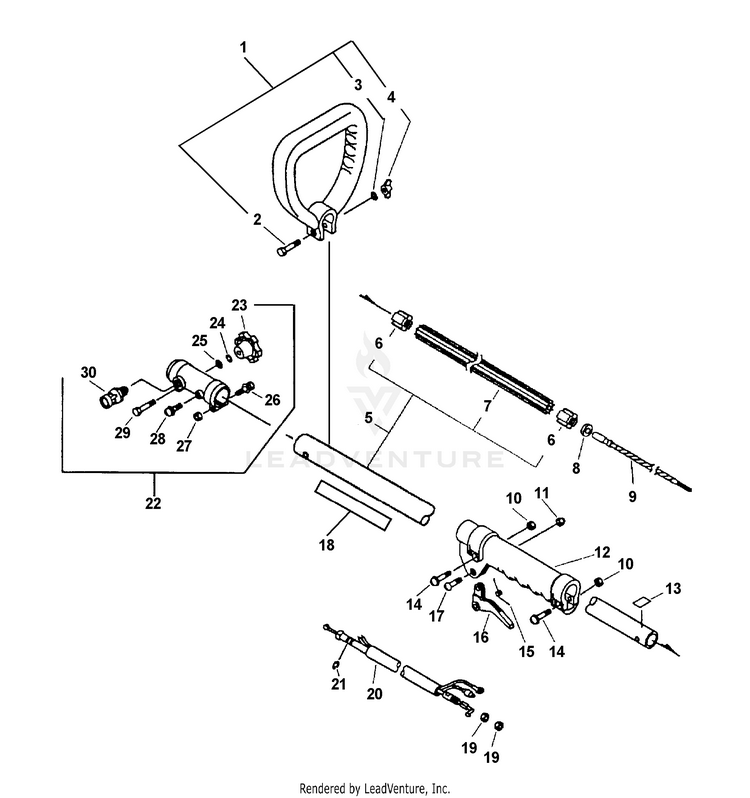

Upper Driveshaft, Coupler, Handles, Throttle

...
...
1
HANDLE ASSY INCLUDES ITEMS 2 - 4 ECH-35160044330
...
2
BOLT 1/4"-20x1-1/2" ECH-90001708048
...
3
WASHER, 1/4" ECH-90003500008
...
4
NUT, WING 1/4"-20 ECH-90003300008
...
5
MAIN PIPE ASSY Includes ITEMS 6 & 7 ECH-61020656630
...
6
STOPPER ECH-61024655330
...
7
LINER - FLEXIBLE ECH-61021756630
...
8
CUSHION ECH-10025156630
...
9
DRIVESHAFT - FLEXIBLE ECH-61001355630
...
10
NUT M5 ECH-90050000005
...
11
NUT, LOCK M5 ECH-90056000005
...
12
GRIP ECH-35121344330
...
13
LABEL - ALIGNMENT ECH-89015204930
...
14
SCREW 5x25 ECH-90024205025
...
15
SPRING, THROTTLE ECH-17804306930
...
16
TRIGGER, THROTTLE ECH-C450000070
...
17
SCREW ECH-17811005330
...
18
LABEL - CAUTION ECH-89022809560
...
19
NUT M6 ECH-90050200006
...
20
CABLE, THROTTLE ECH-17800144430
...
21
E-RING 4 ECH-90070000004
...
22
COUPLER ASSY INCLUDES ITEMS 23 - 30 ECH-61060156632
...
23
KNOB ECH-V299000100
...
24
WASHER, SPRING 5 ECH-90060500005
...
25
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
26
BOLT 5x30 ECH-90014205030
...
27
NUT M5 ECH-90050000005
...
28
SCREW 5x12 ECH-90024205012
...
29
BOLT 5x35 SP ECH-90010005035
...
30
LATCH ASSY ECH-17830256630
...
...
...
...
...
