Echo PAS-2000 Type 1E Pro Attachment Series

Model: PAS-2000 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

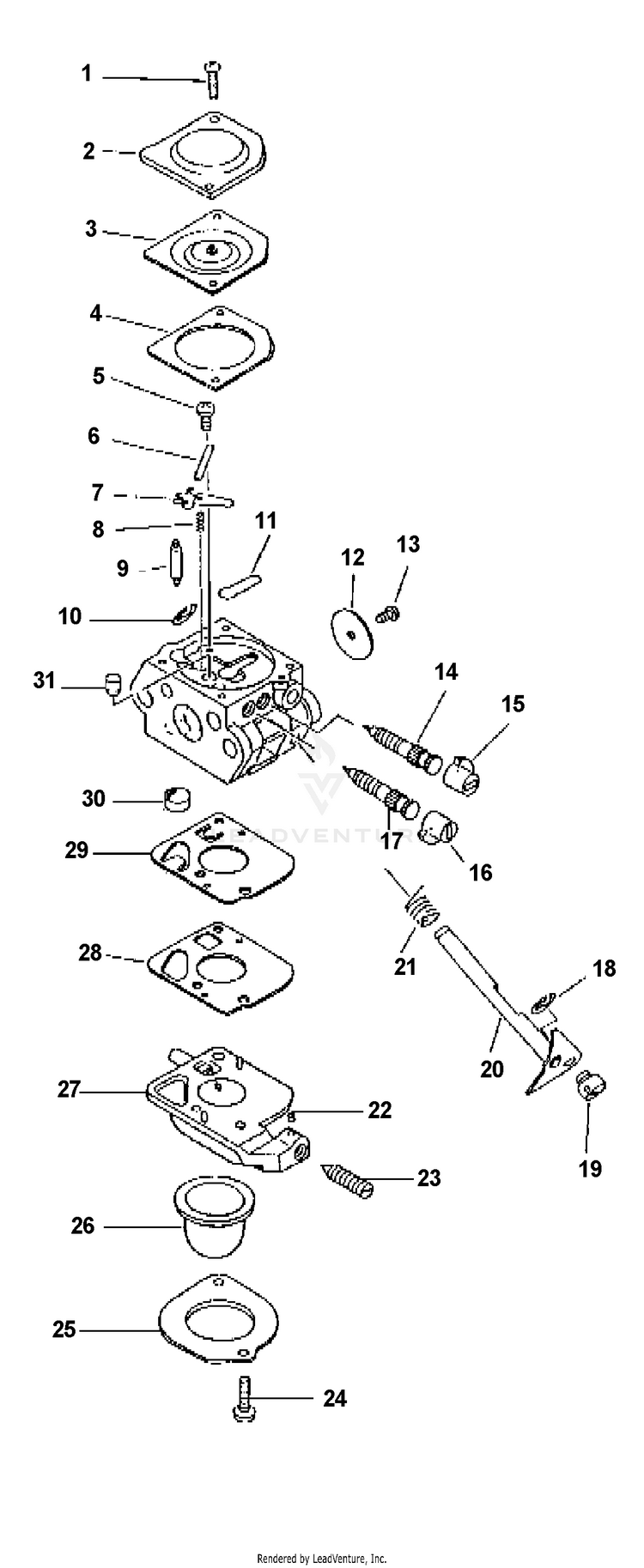

Carburetor

...
...
xx
CARBURETOR C1U-K52 SRM-2400 INCLUDES THE FOLLOWING ITEMS ECH-12520013317
...
1
SCREW ECH-12534452130
...
2
COVER, METERING DIAPHRAGM ECH-12534252130
...
3
DIAPHRAGM, METERING INCLUDED IN REBUILD KIT P/N 12530013310 & GASKET/DIAPHRAGM KIT P/N 12530313310 ECH---
...
4
GASKET, METERING INCLUDED IN REBUILD KIT P/N 12530013310 & GASKET/DIAPHRAGM KIT P/N 12530313310 ECH---
...
5
SCREW ECH-12533942030
...
6
PIN, METERING LEVER INCLUDED IN REBUILD KIT P/N 12530013310 ECH---
...
7
LEVER, METERING INCLUDED IN REBUILD KIT P/N 12530013310 ECH---
...
------------------
SPRING, METERING LEVER INCLUDED IN REBUILD KIT P/N 12530013310 ECH---
...
------------------
VALVE, INLET NEEDLE INCLUDED IN REBUILD KIT P/N 12530013310 ECH---
...
10
E-RING ECH-12532715130
...
11
PLUG, WELCH INCLUDED IN REBUILD KIT P/N 12530013310 ECH---
...
12
VALVE, THROTTLE ECH-12531649030
...
13
SCREW ECH-12531413930
...
14
NEEDLE, MIXTURE ECH-12531813120
...
15
CAP, LIMITER - WHITE ECH-12532909860
...
16
CAP, LIMITER - RED ECH-12532939030
...
17
NEEDLE, HIGH SPEED ECH-12532013310
...
18
CLIP ECH-125327-13930
...
19
SWIVEL ECH-12537242030
...
20
SHAFT, THROTTLE ECH-12531749030
...
21
SPRING, THROTTLE RETURN ECH-12531342030
...
22
PIECE, FRICTION ECH-12537813930
...
23
SCREW, IDLE ADJUST ECH-12533413930
...
24
SCREW ECH-12531011610
...
25
RETAINER ECH-12536311610
...
26
BULB, PURGE ECH-P005003120
...
27
BODY ASSY, PURGE ECH-P005000990
...
------------------
GASKET, PUMP INCLUDED IN REBUILD KIT P/N 12530013310 & GASKET/DIAPHRAGM KIT P/N 12530313310 ECH---
...
------------------
DIAPHRAGM, PUMP INCLUDED IN REBUILD KIT P/N 12530013310 & GASKET/DIAPHRAGM KIT P/N 12530313310 ECH---
...
30
STRAINER INCLUDED IN REBUILD KIT P/N 12530013310 ECH---
...
31
NOZZLE, CHECK VALVE ECH-12537613120
...
xx
REPAIR KIT, CARBURETOR ECH-P005002840
...
xx
GASKET / DIAPHRAGM KIT ECH-12530313310
...
...
...
...
...
