Echo PAS-2000 Type 1E Pro Attachment Series

Model: PAS-2000 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

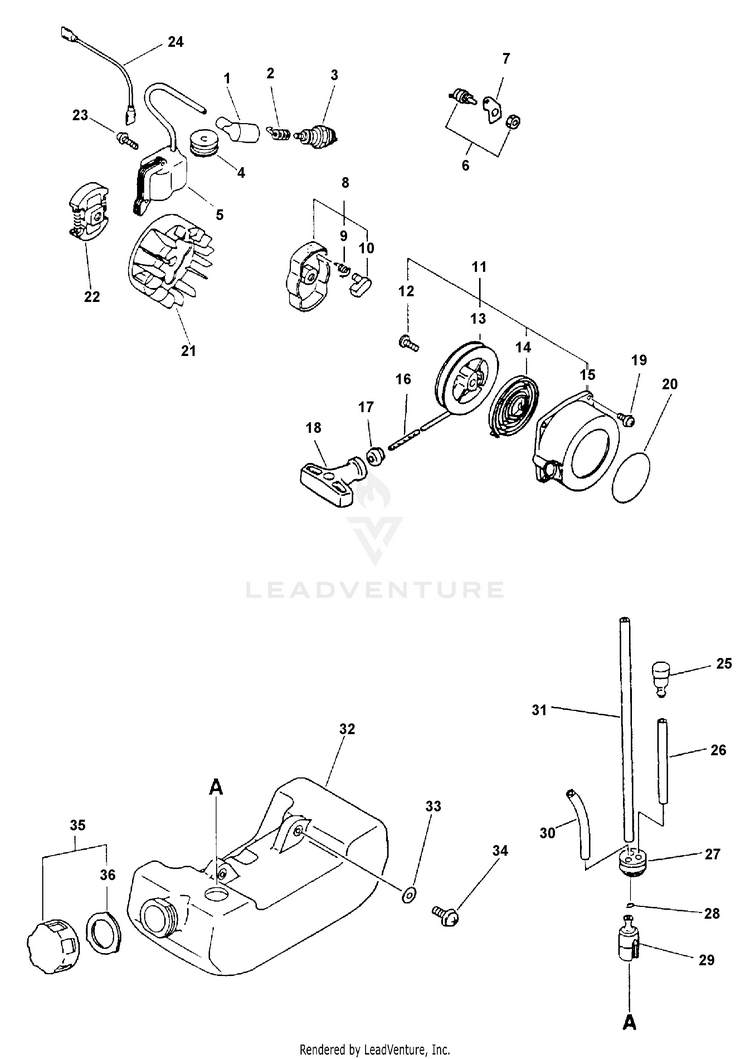

Ignition, Starter, Clutch, Stop Switch, Fuel System

...
...
1
CAP, SPARK PLUG ECH-15901201620
...
2
TERMINAL, SPARK PLUG ECH-15901103432
...
3
SPARK PLUG - BPMR7A ECH-15901010230
...
4
GROMMET ECH-15011244330
...
5
COIL, IGNITION ECH-15662652731
...
6
SWITCH, ON-OFF ECH-16340003460
...
7
BRACKET, SWITCH ECH-16381044330
...
8
PAWL ASSY, STARTER INCLUDES ITEMS 9 & 10 ECH-17720212220
...
9
SPRING, RETURN ECH-17723412220
...
10
PAWL, STARTER - BLACK ECH-17721844330
...
11
STARTER ASSY, RECOIL Includes ITEMS 12-18 ECH-17720042033
...
12
SCREW ECH-17723644330
...
13
REEL, ROPE ECH-17721544430
...
14
SPRING, RECOIL ECH-P022019680
...
15
CASE, RECOIL STARTER ECH-17723242032
...
16
ROPE, STARTER RePower BULK OPTION: 99944440000 ECH---
...
17
GUIDE, ROPE ECH-17722742030
...
18
GRIP, STARTER ECH-17722806530
...
19
BOLT 4x16 ECH-V202000830
...
20
LABEL - STARTER - ECHO ECH-X502000330
...
21
FLYWHEEL ECH-15680109660
...
22
CLUTCH ASSY ECH-17500056831
...
23
SCREW 4x22 ECH-90016204022
...
24
LEAD - IGNITION ECH-V485001080
...
25
VENT ASSY INCLUDED IN KIT 90010 ECH-A356000031
...
26
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
27
GROMMET, FUEL 5 ECH-13211546730
...
28
CLIP 6 MM ECH-13201309820
...
29
FILTER, FUEL INCLUDED IN KIT 90008 ECH-A369000480
...
30
PIPE, RETURN, FUEL, 3X6X90 RePower BULK OPTION: 90017 ECH-V471006160
...
31
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
32
TANK, FUEL ECH-13100546831
...
33
WASHER 5.5x12x0.8 ECH-90060300005
...
34
SCREW 5x16 ECH-90023805016
...
35
FUEL CAP ASSY INCLUDES ITEM 36 (INCLUDED IN KIT 90010) ECH-P200000830
...
36
GASKET, FUEL CAP ECH-V107000230
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000
...
xx
TUNE-UP KIT - YOUCAN™ ECH-90152Y
...
xx
CAP/VENT KIT - REPOWER ECH-90248
...
...
...
...
...
