Echo MS-20 Manual Sprayer

Model: MS-20

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

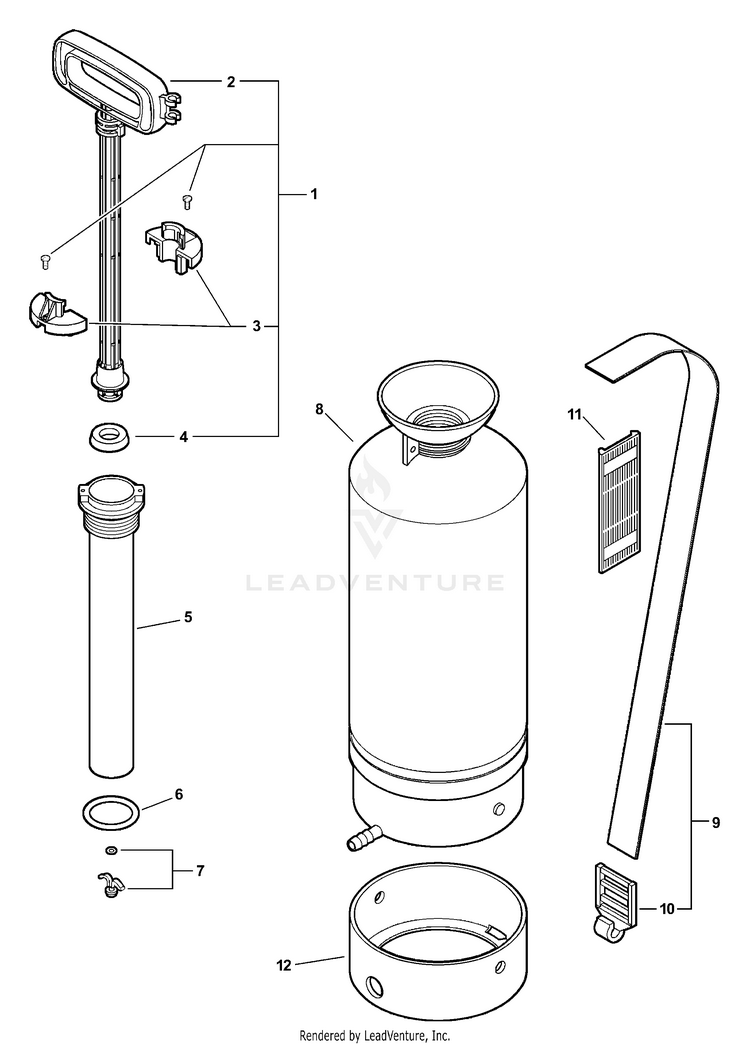

Pump, Tank, Shoulder Strap

...
...
1
PUMP HANDLE ASSY INCLUDES ITEMS 2-4 ECH-4360001
...
2
HANDLE, PUMP ECH-4356000
...
3
CAPS, PUMP HANDLE ECH-4357000
...
4
PISTON, PLASTIC ECH-YH482000600
...
5
TUBE, PUMP ECH-4363000
...
6
O-RING ECH-4550000
...
7
CHECK VALVE ASSY ECH-4560000
...
8
TANK NOT AVAILABLE SEPARATELY ECH---
...
9
STRAP ASSY, SHOULDER Includes ITEM 10 ECH-4150000
...
10
HOOK ECH-4310000
...
11
PAD, SHOULDER STRAP ECH-4360000
...
12
BASE, TANK - MS-20 ECH-4365000
...
12
BASE, TANK - MS-35 ECH-4454000
...
...
...
...
...
