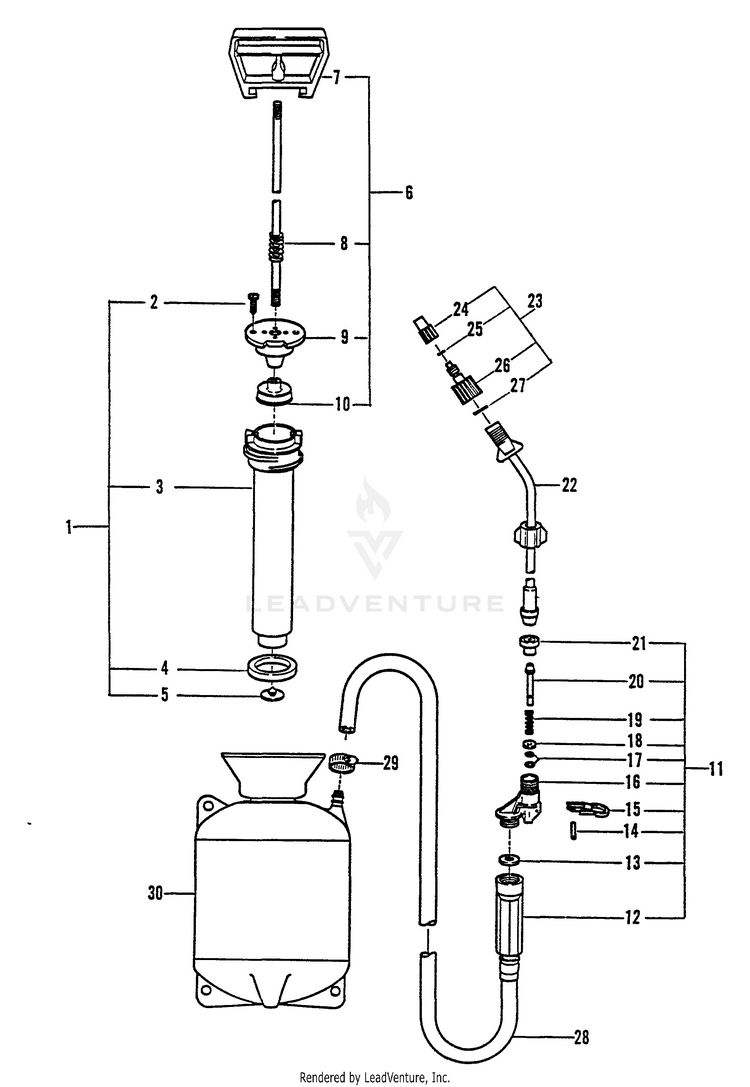

Echo MS-2 Manual Sprayer

Model: MS-2

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Unit Complete

...
...
1
PUMP ASSY Includes Items 2 - 6 ECH-2310961400
...
2
SCREW ECH-2310010000
...
3
CYLINDER, PUMP ECH-2310030000
...
4
GASKET, PUMP Included in Std Repair Kit ECH-2310040000
...
4
GASKET, PUMP Included in Opt Repair Kit ECH-2310042200
...
5
VALVE, CHECK ECH-2310150000
...
6
PUMP ASSY Includes ITEMS 7 - 10 ECH-2310961401
...
7
HANDLE, PUMP ECH-2310280000
...
8
SPRING Included in Std & Opt Repair Kit ECH-2310050000
...
9
COVER, CYLINDER ECH-2310020000
...
10
PISTON ASSY ECH-2310181401
...
11
SHUT-OFF VALVE ASSY Includes ITEMS 12-21 ECH-2310550100
...
12
HANDLE When Ordered Separately, Includes Hose, Item 28 ECH-99944100160
...
13
WASHER Not Used When Opt. Filter is Installed ECH-2310351600
...
14
PIN Order Item 12, Not Serviced Separately ECH---
...
15
TRIGGER Use Item 12, Not Serviced Separately ECH---
...
16
VALVE Includes Items 14, 15, 17 - 20 ECH-99944100170
...
17
O-RING Included in Std Repair Kit ECH-2310520000
...
17
O-RING Included in Opt Repair Kit ECH-2310522200
...
18
WASHER Order Item 12, Not Serviced Separately ECH---
...
19
SPRING Order Item 12, Not Serviced Separately ECH---
...
------------------
SPINDLE Order Item 12, Not Serviced Separately ECH---
...
21
SEAT, VALVE ECH-2310500000
...
22
EXTENSION, 16" STD (BRASS) ECH-99944100130
...
23
NOZZLE (NYLON) STD Includes Items 24 - 26 ECH-99944100150
...
xx
NOZZLE (BRASS) OPT Includes Items 24 - 27 ECH-99944100250
...
------------------
CAP Use Item 23, Not Serviced Separately ECH---
...
xx
CAP - BRASS ECH-2310950000
...
25
O-RING Included in Std Repair Kit ECH-2310920000
...
xx
O-RING Included in Opt Repair Kit ECH-2310922200
...
26
BODY Use Item 23, Not Serviced Separately ECH---
...
27
O-RING Included in Std Repair Kit ECH-2310890000
...
xx
O-RING Included in Opt Repair Kit ECH-2310892200
...
28
HOSE - 39" ECH-2361460000
...
29
CLAMP, HOSE ECH-2360090000
...
30
TANK NOT AVAILABLE SEPARATELY ECH---
...
xx
REPAIR KIT MS-2/3/5 Includes All Std Seals, Refer to Literature for Illustration and Specific Application ECH-99944100280
...
xx
REPAIR KIT VITON MS-2/3/5 Includes Viton Equivalent of all Std Rubber Seals, Refer to Literature for Illustration and Specific Application ECH-99944100270
...
xx
FILTER Refer to Literature for Illustration and Specific Application ECH-99944100180
...
xx
NOZZLE, FAN SPRAY Refer to Literature for Illustration and Specific Application ECH-99944100260
...
xx
STRAP, PADDED Refer to Literature for Illustration and Specific Application ECH-99944100140
...
xx
ADJ. PRESSURE REGULATOR Refer to Literature for Illustration and Specific Application ECH-99944100120
...
xx
TWIN NOZZLE ASSY - 6" Refer to Literature for Illustration and Specific Application ECH-99944100050
...
xx
TWIN NOZZLE ASSY - 11" Refer to Literature for Illustration and Specific Application ECH-99944100060
...
xx
NOZZLE, DUAL SWIVEL Refer to Literature for Illustration and Specific Application ECH-99944100070
...
xx
WEED SHIELD Refer to Literature for Illustration and Specific Application ECH-99944100080
...
xx
3 NOZZLE SPRAY BOOM Refer to Literature for Illustration and Specific Application ECH-99944100090
...
...
...
...
...
