Echo MS-16 Manual Sprayer

Model: MS-16

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

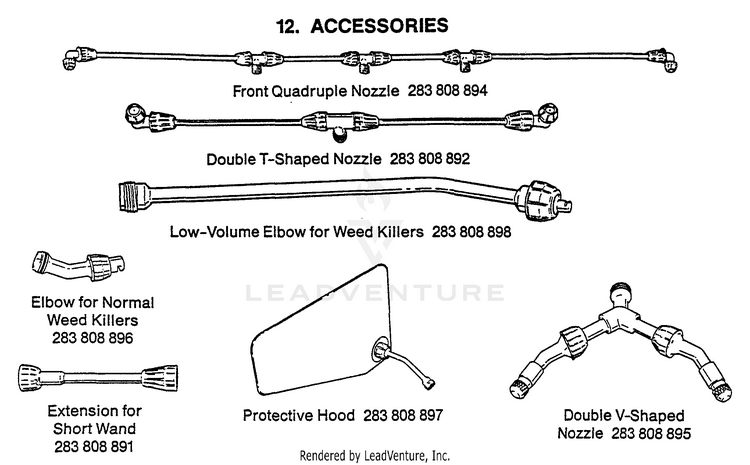

Accessories

...
...
283808894
FRONT QUADRUPLE NOZZLE ECH-283808894
...
283808892
NOZZLE - DUOBLE T ECH-283808892
...
283808898
LOW-VOLUME ELBOW FOR WEED KILLERS ECH-283808898
...
283808896
ELBOW FOR NORMAL WEED KILLERS ECH-283808896
...
283808891
EXTENSION, WAND ECH-283808891
...
283808897
PROTECTIVE HOOD ECH-283808897
...
283808895
NOZZLE - DUOBLE V ECH-283808895

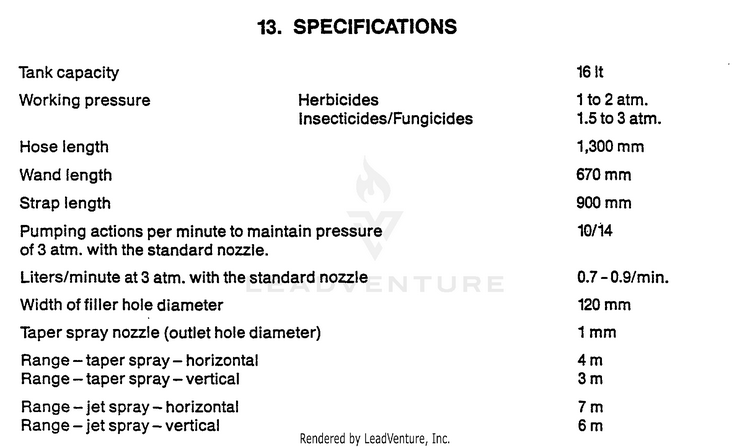

Specifications

...

No Parts Available for this Schematic

Unit Complete

...
...
1
WASHER, FLAT - 13x2 ECH-221999003
...
2
PIN - COTTER ECH-223322902
...
3
SCREW - 8x25 ECH-225323825
...
4
WASHER - PLATED ECH-221123008
...
5
RING, STRAP ECH-283918316
...
6
WASHER ECH-221122903
...
7
ARM ECH-283918023
...
8
LEVER, PUMP ECH-283918622
...
9
GRIP ECH-283918317
...
10
PUMP ASSY Includes ITEMS 13,14,16,17,20 ECH-283918826
...
11
WASHER, SEAL ECH-283909409
...
12
BUSHING, GUIDE ECH-283911307
...
13
PIPE ASSY ECH-283928822
...
14
WASHER - RUBBER ECH-283909306
...
14A
WASHER, CUP VITON OPTIONAL ECH-283911305
...
16
BEARING, BALL ECH-222008902
...
17
VALVE ECH-283909404
...
18
CYLINDER ECH-283909303
...
19
AGITATOR ECH-283911306
...
20
O-RING AN-6 ECH-222315906
...
20A
O-RING - 6 OPTIONAL ECH-222316906
...
22
NUT, GUIDE ECH-283918308
...
23
ELBOW ECH-283918322
...
24
HOSE ASSY Includes ITEMS 26-27 ECH-283918815
...
25
HOSE - 60x12x1, 3M ECH-211009312
...
26
HOSE CAP ECH-283808308
...
27
NUT ECH-283808312
...
28
LID ECH-283918302
...
29
FILTER, TANK ECH-283918303
...
30
CLIP ECH-283918315
...
31
STRAP-1 - 9M ECH-283928003
...
32
HOOK, STRAP END ECH-283918318
...
33
RING, STRAP TIGHTENER ECH-283918328
...
34
CUSHION, BACKPACK ECH-283918306
...
35
TANK ECH-283918301
...
36
NEW LANCE, COMPLETE ECH-283946823
...
37
HANDLE ASSEMBLY ECH-283947801
...
38
HOLDER, FILTER ECH-283946367
...
39
FILTER, WAND ECH-283808327
...
40
NUT M6 ECH-226200006
...
41
GUIDE ECH-283906332
...
42
O-RING AN 8 ECH-222315908
...
42A
O-RING - 8 OPTIONAL ECH-222316908
...
43
O-RING ECH-222399587
...
44
BODY, HANDLE ECH-283805306
...
45
O-RING AN-6 ECH-222315906
...
45A
O-RING - 6 OPTIONAL ECH-222316906
...
46
WASHER ECH-284202334
...
47
PIPE ASSY ECH-283918627
...
48
NOZZLE ASSY ECH-283808803
...
49
SPRAYER ECH-283901322
...
50
O-RING AN 5 ECH-222315905
...
50A
O-RING - 5 OPTIONAL ECH-222316905
...
51
NOZZLE - 1 MM ECH-283902323
...
51A
NOZZLE, 0.75 MM OPTIONAL ECH-283901123
...
51B
NOZZLE - 1.5 MM OPTIONAL ECH-283901023
...
52
HANDLE ASSEMBLY ECH-283947801
...
53
CLIP ECH-283918350

283808896 Weed Killer Elbow

...
