Echo MS-100 Manual Sprayer

Model: MS-100

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

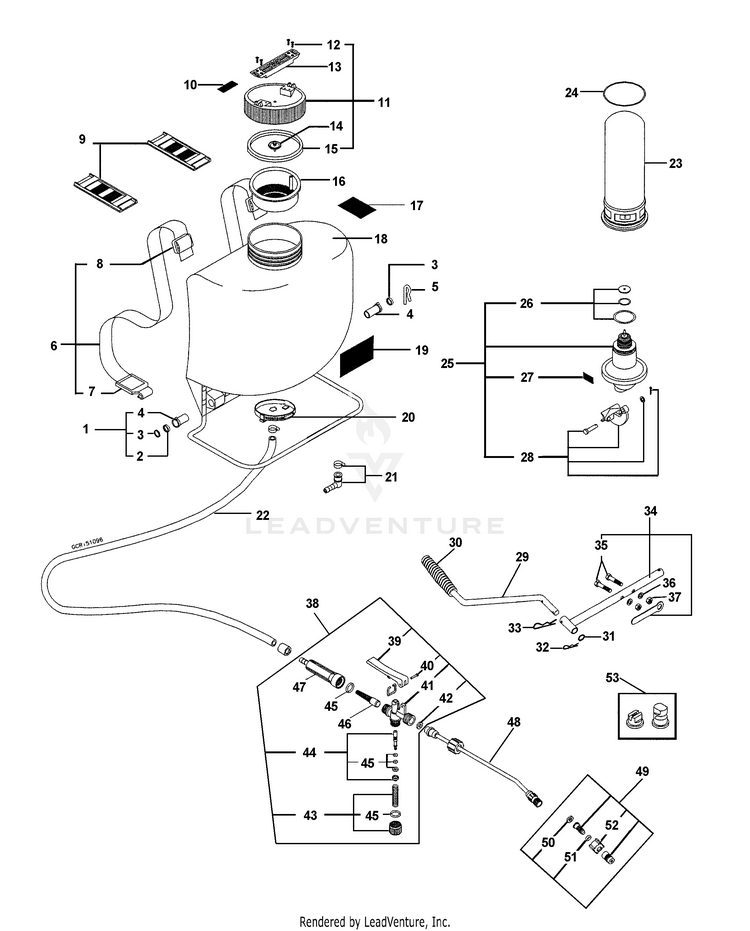

Knapsack Sprayer

...
...
1
BUSHING SET, NYLON INCLUDES ITEMS 2-5 ECH-4040000
...
2
WASHER - NYLON ECH---
...
3
WASHER ECH---
...
------------------
BUSHING, NYLON ECH---
...
------------------
PIN, HAIR ECH---
...
6
STRAP ASSY, SHOULDER Includes ITEM 7 & 8 ECH-4150000
...
7
HOOK ECH-4310000
...
8
CLIP ECH---
...
9
PAD, SHOULDER STRAP ECH-4360000
...
10
LABEL - CAUTION ECH-4132153
...
11
CAP ASSY Includes ITEMS 12-15 ECH-4010001
...
12
SCREW ECH---
...
13
HANDLE ECH---
...
14
VALVE, CHECK ECH-4020308
...
15
SEAL ECH-4020100
...
16
STRAINER ECH-4010119
...
17
LABEL - INSTRUCTION ECH-4132353
...
18
TANK Includes ITEM 4 ECH-4185053
...
19
LABEL - CAUTION ECH-4132253
...
20
CLAMP ECH-4110000
...
21
FITTING - 90? INCLUDES CLAMP ECH-4160000
...
22
HOSE INCLUDES CLAMP ECH-4170000
...
23
TANK, PRESSURE Includes ITEM 24 ECH-4090000
...
24
O-RING ECH-4100000
...
25
MODULE DIAPHRAGM PUMP INCLUDES ITEMS 26-28 ECH-4130816
...
26
O-RING, WASHER SET ECH-4121000
...
27
LABEL ECH-4132553
...
28
CRANK ASSY ECH-4140000
...
29
PUMP HANDLE INCLUDES ITEMS 30-33 ECH-4070000
...
30
GRIP ECH---
...
31
WASHER ECH---
...
32
PIN / WASHER KIT ECH-4018000
...
33
HAIR PIN - LARGE ECH-4181000
...
34
LEVER, PUMP INCLUDES ITEMS 35-37 ECH-4050000
...
35
SCREW, SET INCLUDES ITEMS 36 & 37 ECH-4060000
...
36
WASHER ECH---
...
37
NUT ECH---
...
38
SPRAYER PISTOL ASSY INCLUDES ITEMS 39-47 ECH-99944100330
...
------------------
LEVER ECH---
...
40
PIN, LEVER ECH---
...
------------------
BODY, NOZZLE ECH---
...
42
WASHER ECH-4200001
...
43
PLUG SET Includes ITEM 45 ECH-4210001
...
44
SPINDLE SET Includes ITEM 45 ECH-4190000
...
45
O-RING KIT ECH-4200000
...
46
FILTER ECH-4691319
...
47
GRIP ECH-4717910
...
48
WAND, BRASS ECH-4220000
...
49
SPRAY NOZZLE ASSY INCLUDES ITEMS 50-52 ECH-99944100340
...
50
WASHER ECH-4200001
...
51
O-RING ECH-4260000
...
52
NOZZLE HOLDER KIT ECH-4240000
...
53
ECH-99944100350
...
...
...
...
...
