Echo HPP-1900 Power Washer

Model: HPP-1900

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

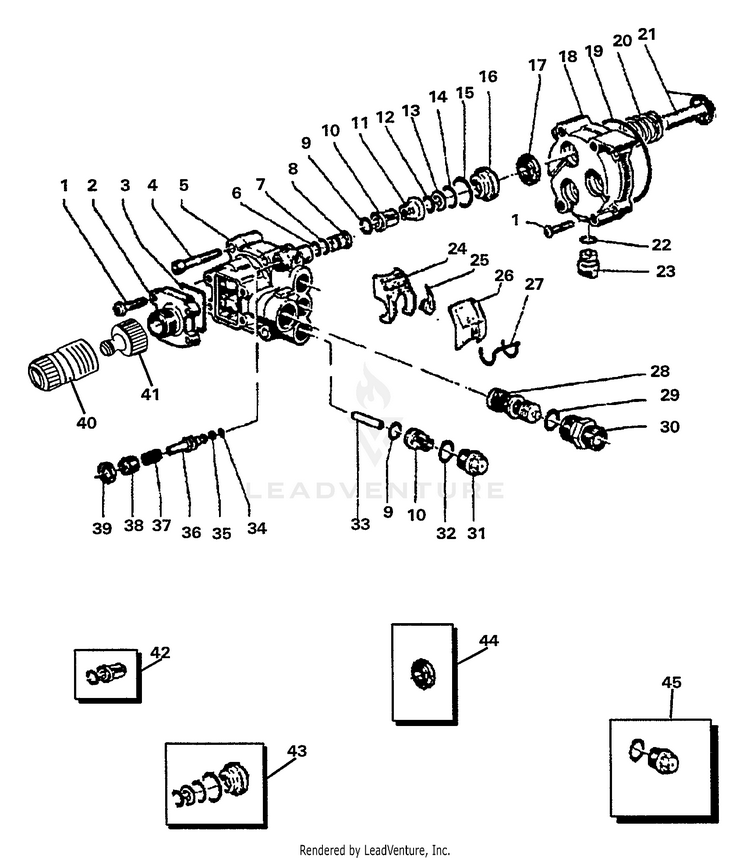

Manifold, Piston, Pressure Gauge, Inlet, Outlet, Valves, Rebuild Kits

...
...
1
SCREW - 6x30 ECH-7399191400
...
2
COVER ECH-7356210251
...
3
O-RING 1.549x.103 ECH-7390387700
...
4
SCREW - 8x50 ECH-7399314400
...
5
HEAD, PUMP ECH-7356120022
...
6
O-RING 0.344x.070 ECH-7390358100
...
7
O-RING 0.299x.103 ECH-7390381800
...
8
CYLINDER, PRESSURE GAUGE ECH-7354210970
...
9
O-RING ECH-7390358900
...
10
UNIT VALVE ECH-7336711601
...
11
SPACER ECH-7356210151
...
12
O-RING 0.469x.103 ECH-7390382700
...
13
RING ECH-7390507300
...
14
O-RING 0.739x.070 ECH-7390359600
...
15
O-RING 0.937x.103 ECH-7390385700
...
16
SPACER ECH-7356080051
...
17
SEAL, OIL ECH-7390154200
...
18
FLANGE ECH-7356210422
...
19
O-RING 3.237x.103 ECH-7390391600
...
20
SPRING ECH-7394756400
...
21
PISTON ECH-7356040101
...
22
O-RING ECH-7390383000
...
23
PLUG ECH-7356210051
...
24
DIAL ECH-7336259001
...
25
INDICATOR ECH-7336257851
...
26
COVER, DIAL ECH-7336257751
...
27
SPRING, TORSION ECH-7394871800
...
28
VALVE KIT ECH-7313200000
...
29
O-RING 0.797x.103 ECH-7390384700
...
30
FITTING, OUTLET ECH-7336322370
...
31
PLUG, M18 ECH-7398213500
...
32
O-RING, 0.614x0.070 Includes In ITEM 45 ECH-7390359300
...
33
PIN ECH-7356210351
...
34
O-RING 0.118x.079 ECH-7390366200
...
35
RING, BACK-UP, 0.114x0.070 ECH-7390500400
...
36
GAUGE, PISTON ECH-7336258970
...
37
SPRING ECH-7394733800
...
38
SCREW M14x1 ECH-7336258070
...
39
NUT M14x1x17x3 ECH-7392249200
...
40
COUPLING, QUICK CONNECT - FEMALE ECH-7393657000
...
41
COUPLING, QUICK CONNECT - MALE ECH-7393668500
...
42
VALVE KIT INCLUDES ITEMS 9 & 10 ECH-7313400000
...
43
VALVE PACKING KIT Includes ITEMS 12-16 ECH-7314600000
...
44
KIT, OILSEAL (3) Includes ITEM 17 ECH-7314700000
...
45
KIT, PLUG (3) INCLUDES ITEMS 31 & 32 ECH-7313300000
...
...
...
...
...
