Echo HPP-1900 Power Washer

Model: HPP-1900

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

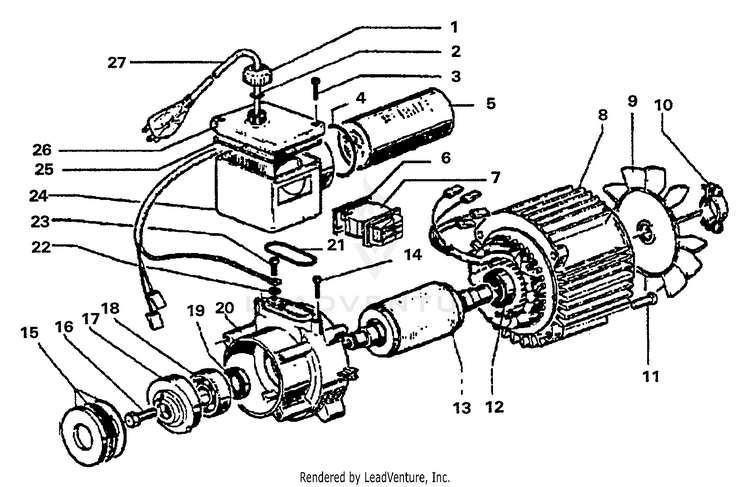

Crankcase, Plate Cam, Electric Motor, Switch

...
...
1
NUT, WING ECH-7392976800
...
2
O-RING 0.296x.084 ECH-7390402600
...
3
SCREW M4x18 ECH-7399131200
...
4
O-RING 1.925x.103 ECH-7390388900
...
5
CONDENSER ECH-7393568800
...
6
GASKET, SWITCH ECH-7341212684
...
7
SWITCH, IGNITION ECH-7393502700
...
8
STATOR ECH-7338326602
...
9
FAN ECH-7338030051
...
10
RING, LOCK ECH-7338211801
...
11
SCREW - 6x30 ECH-7399191400
...
12
BEARING, BALL ECH-7391804000
...
13
ROTOR ECH-7338346002
...
14
SCREW - 4x13 ECH-7399147400
...
15
AXLE, BEARING ECH-7391834700
...
16
SCREW ECH-7399306800
...
17
PLATE, CAM ECH-7356211122
...
18
BEARING, BALL ECH-7391805000
...
19
SEAL, OIL ECH-7390161400
...
20
CRANKCASE ECH-7356010022
...
21
O-RING 1.549x.103 ECH-7390387700
...
22
WASHER M5.3 ECH-7396691300
...
23
SCREW ECH-7399154200
...
24
COVER ECH-7338212451
...
25
O-RING 3.237x.103 ECH-7390391600
...
26
COVER ECH-7338212151
...
27
CABLE, COMPLETE ECH-7310720901
...
...
...
...
...
