Echo HPP-1890 S/N: 2457 - 2912 -- 1992 Models Power Washer

Model: HPP-1890 S/N: 2457 - 2912 -- 1992 Models

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

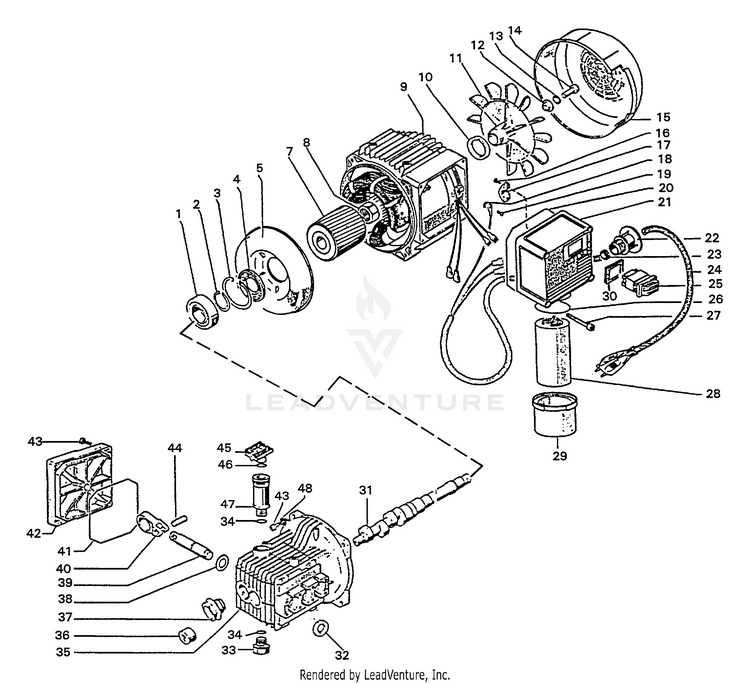

Crankcase, Crankshaft, Piston, Electric Motor, Switch

...
...
1
BEARING, BALL ECH-7391837300
...
2
RING, RETAINING ECH-7390066700
...
3
RING, SNAP ECH-7390085000
...
4
SEAL, OIL ECH-7390165000
...
5
UNKNOWN ECH---
...
7
ROTOR ECH-7340337002
...
8
NUT M22 ECH-7392266000
...
9
STATOR ECH-7340327002
...
10
SEAL ECH-7390163200
...
11
FAN ECH-7345030051
...
12
PLATE ECH-7345212570
...
13
WASHER ECH-7396701400
...
14
SCREW M8x20 ECH-7399305900
...
15
COVER, FAN ECH-7345040051
...
16
SCREW ECH-7399145000
...
17
CLAMP ECH-7345211951
...
18
WASHER M5.3 ECH-7396691300
...
19
SCREW M5x12 ECH-7399151500
...
20
O-RING ECH-7390392000
...
21
COVER, SWITCH ECH-7345212451
...
22
HOLDER, CABLE ECH-7345212751
...
23
GROMMET, CORD GRIP ECH-7345212147
...
24
CABLE, COMPLETE ECH-7310720901
...
25
SWITCH, IGNITION ECH-7393502800
...
26
O-RING 1.925x.103 ECH-7390388900
...
27
SCREW M5x65 ECH-7399170500
...
28
CONDENSER ECH-7393568800
...
29
COVER, CAPACITOR ECH-7345212051
...
30
GASKET, SWITCH ECH-7341212684
...
31
CRANKSHAFT ECH-7355020335
...
32
SEAL ASSY, OIL (CONTAINS 3 SEALS) ECH-7334008301
...
33
PLUG ECH-7398209100
...
34
O-RING 13 95x2 62 ECH-7390383300
...
35
CRANKCASE ECH-7355010022
...
36
NEEDLE, BEARING ECH-7391801400
...
37
INDICATOR, OIL LEVEL ECH-7397596800
...
38
WASHER, FLINGER ECH-7396732000
...
39
PISTON, STAINLESS STEEL ECH-7351055066
...
40
ROD, CONNECTING ECH-7351030022
...
41
GASKET, COVER ECH-7390391700
...
42
COVER, CRANKCASE ECH-7355160051
...
43
SCREW M6x25 ECH-7399189700
...
44
PIN ECH-7397731000
...
45
PLUG ECH-7355211251
...
46
O-RING 9 92x2 62 ECH-7390382200
...
47
SPACER, DIPSTICK ECH-7355210051
...
48
LOCKWASHER - 6 ECH-7396693800
...
...
...
...
...
