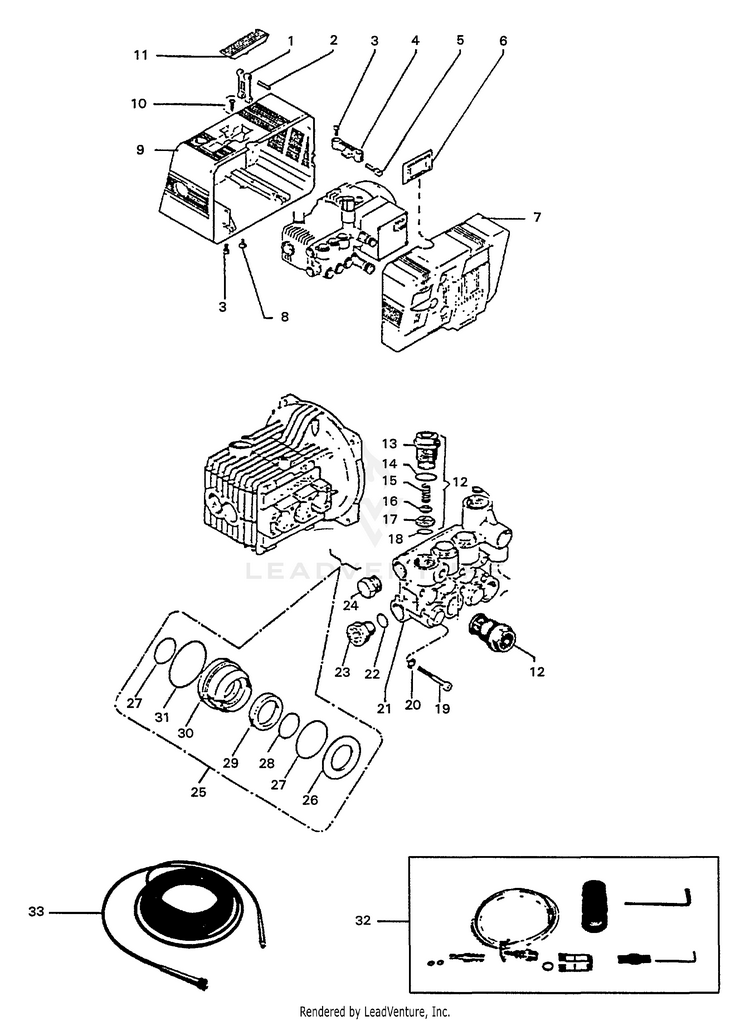

Echo HPP-1890 S/N: 2457 - 2912 -- 1992 Models Power Washer

Model: HPP-1890 S/N: 2457 - 2912 -- 1992 Models

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Seals, Valves, Motor Housing, Hose, Accessories

...
...
1
ARM, HANDLE ECH-7355240751
...
2
PIN ECH-7397620000
...
3
SCREW M8x16 ECH-7399303900
...
4
PLATE,?HANDLE?RETAINER ECH-7355240251
...
5
SHAFT ECH-7355240451
...
6
SWITCH, IGNITION ECH-7393502800
...
7
COVER, FRONT ECH-7355230551
...
8
PLUG ECH-7398192400
...
9
COVER - REAR ECH-7355230401
...
10
SCREW - 4x13 ECH-7399147400
...
11
HANDLE ECH-7355240351
...
12
VALVE KIT INCLUDES ITEMS 13 - 18 ECH-7334000102
...
13
CAP, VALVE ECH---
...
14
O-RING ECH---
...
15
SPRING, VALVE ECH---
...
16
PLATE ECH---
...
17
SEAT, VALVE ECH---
...
18
O-RING ECH-7390384100
...
19
SCREW M6x40 ECH-7399194300
...
20
LOCKWASHER - 6 ECH-7396693800
...
21
MANIFOLD ECH-7355120122
...
22
O-RING ECH-7390359100
...
23
PLUG ECH-7398209000
...
24
CAP ECH-7398210000
...
25
RETAINER REBUILD PACKING KIT INCLUDES ITEMS 26 - 31 ECH-7334000104
...
26
WASHER (INCLUDED IN KITS P/N 7334000103 & REBUILD RETAINER PACKING KIT P/N 7334000104) ECH---
...
27
O-RING (INCLUDED IN KITS P/N 7334000103 & REBUILD RETAINER PACKING KIT P/N 7334000104) ECH-7390383500
...
28
O-RING (INCLUDED IN KITS P/N 7334000103 & REBUILD RETAINER PACKING KIT P/N 7334000104) ECH---
...
29
PACKING (INCLUDED IN KITS P/N 7334000103 & REBUILD RETAINER PACKING KIT P/N 7334000104) ECH---
...
------------------
PACKING (INCLUDED IN REBUILD RETAINER PACKING KIT P/N 7334000104) ECH---
...
31
O-RING (INCLUDED IN KITS P/N 7334000103 & REBUILD RETAINER PACKING KIT P/N 7334000104) ECH-7390360400
...
32
ACCESSORY KIT ECH-7355640501
...
33
HOSE - 8M ECH-731161005
...
xx
REBUILD RETAINER PACKING KIT ECH-7334009401
...
...
...
...
...
