Echo HPP-1890 S/N: 2457 - 2912 -- 1992 Models Power Washer

Model: HPP-1890 S/N: 2457 - 2912 -- 1992 Models

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

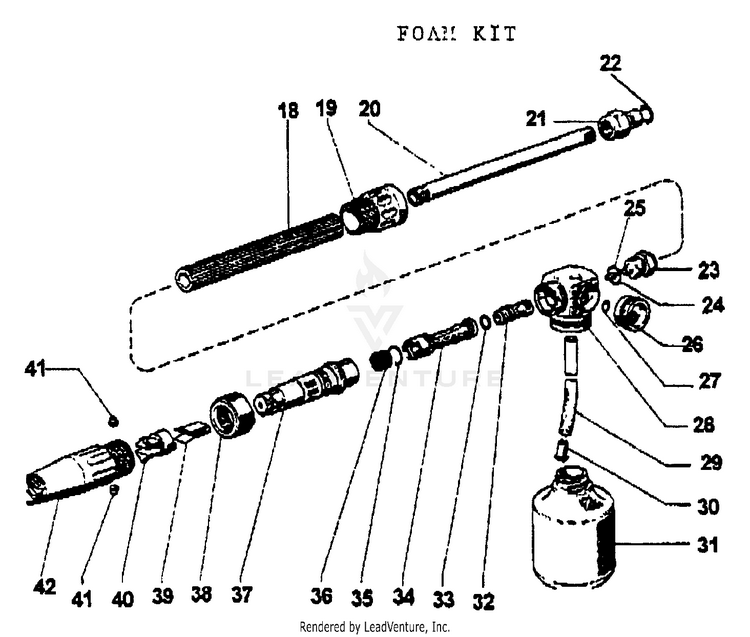

Foam Kit

...
...
xx
FORM KIT Includes Items 18 - 42 ECH-99944800040
...
18
GRIP, HANDLE ECH-7318010698
...
19
NUT, RING ECH-7310029551
...
20
PIPE ECH-7318203389
...
21
COUPLING, MALE ECH-7310029770
...
22
O-RING ECH-7390382000
...
23
FITTING, GREASE ECH-7310029170
...
24
NOZZLE - RED ECH-7398667400
...
25
O-RING, 0.614x0.070 ECH-7390359300
...
26
KNOB, REGULATING ECH-7310028951
...
27
O-RING 0.239x.070 ECH-7390357400
...
28
BODY ECH-7310028851
...
29
PIPE ECH-7310029298
...
30
FILTER ECH-7392891400
...
31
CONTAINER, 5 LITER ECH-7310027651
...
32
TUBE ECH-7310028551
...
33
O-RING ECH-7390358000
...
34
PIPE ECH-7310028651
...
35
O-RING ECH-7390358900
...
36
FILTER ECH-7310027036
...
37
CYLINDER ECH-7310029051
...
38
NUT ECH-7392983600
...
39
BLADE ECH-7310030476
...
40
HOLDER, BLADE ECH-7310029951
...
41
CAP ECH-7398191600
...
42
KNOB, REGULATING ECH-7310030051
...
...
...
...
...
