Echo HPP-1890 -- 1991 Models Power Washer

Model: HPP-1890 -- 1991 Models

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

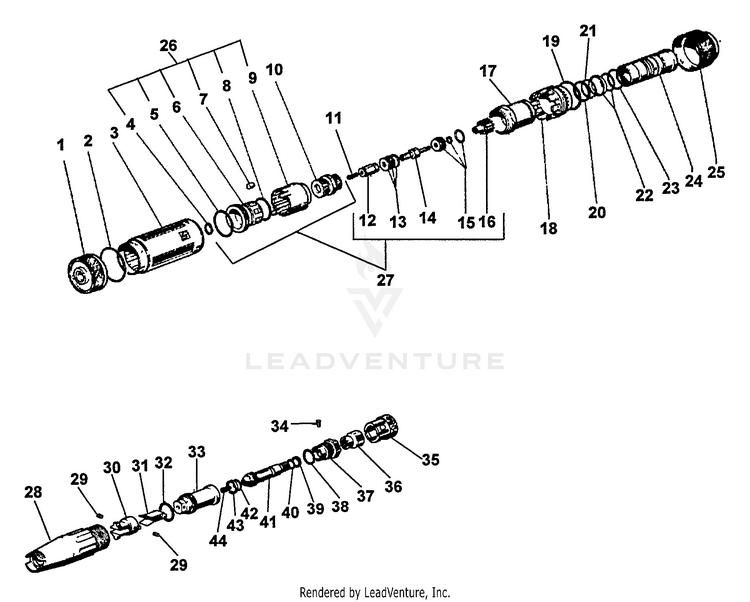

Rotox Nozzle

...
...
xx
NOZZLE ASSY, CPT., ROTOX ORDER SEPARATE PARTS ECH-99999999988
...
1
CAP, FRONT ECH-7310039651
...
2
O-RING 33 05x1 78 ECH-7390361400
...
3
KNOB ECH-7310039551
...
4
RING, SNAP ECH-7390053900
...
5
O-RING ECH-7390360600
...
6
ROTOR (INCLUDED IN (PARTIAL) ROTOX REBUILD KIT P/N 7311610010 & (COMPL.) ROTOX REBUILD KIT P/N 7311610011) ECH---
...
7
BEARING, ROLLER (INCLUDED IN (PARTIAL) ROTOX REBUILD KIT P/N 7311610010 & (COMPL.) ROTOX REBUILD KIT P/N 7311610011) ECH---
...
8
O-RING 0.797x.103 ECH-7390384700
...
9
CLUTCH ECH-7310040051
...
10
NUT ECH-7310040470
...
11
NOZZLE - RED ECH-7398667400
...
12
HOLDER, NOZZLE ECH-7310040370
...
13
BEARING, BALL ECH-7391772200
...
14
CRANKSHAFT ASSY ECH-7310040270
...
15
SEAL ECH-7310719101
...
16
ROTOR ECH-7310041001
...
17
CYLINDER, DIFFUSER ECH-7310040670
...
18
DIFFUSER, LOW PRESSURE ECH-7310039951
...
19
O-RING 28 25x2 62 ECH-7390386300
...
20
RING, ANTI-EXTRUSION ECH-7390513600
...
21
O-RING 20 35x1 78 ECH-7390359800
...
22
SEAL ECH-7390273600
...
23
O-RING 18 72x2 62 VITON ECH-7390384500
...
24
BODY, DIFFUSER ECH-7310040570
...
25
RING, LOCKING ECH-7310039751
...
26
KIT, (PARTIAL) ROTOX REBUILD INCLUDES ITEMS 4 - 9 ECH-7311610010
...
27
KIT, (COMPL.) ROTOX REBUILD INCLUDES ITEMS 4 - 10, 12 - 16 ECH-7311610011
...
xx
CAR WASH NOZZLE ECH-99944800150
...
28
KNOB, REGULATING ECH-7310030051
...
29
PIN ECH-7397612700
...
30
HOLDER, BLADE ECH-7310029951
...
31
BLADE ECH-7310030476
...
32
O-RING 20 35x1 78 ECH-7390359800
...
33
CYLINDER ECH-7310030170
...
34
PIN ECH-7397612300
...
35
KNOB, REGULATING ECH-7310030851
...
36
COUPLING ECH-7394513200
...
37
NUT, ADJUSTING ECH-7310030370
...
38
O-RING ECH-7390383200
...
39
RING, SEALING ECH-7390503300
...
40
O-RING 0.302x.070 ECH-7390357700
...
41
TUBE ECH-7310030270
...
42
O-RING ECH-7390358200
...
43
SPACER ECH-7390260000
...
44
NOZZLE - RED ECH-7398667400
...
...
...
...
...
