Echo ES726 S/N: 9029001 - 9039900 Sprayer

Model: ES726 S/N: 9029001 - 9039900

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

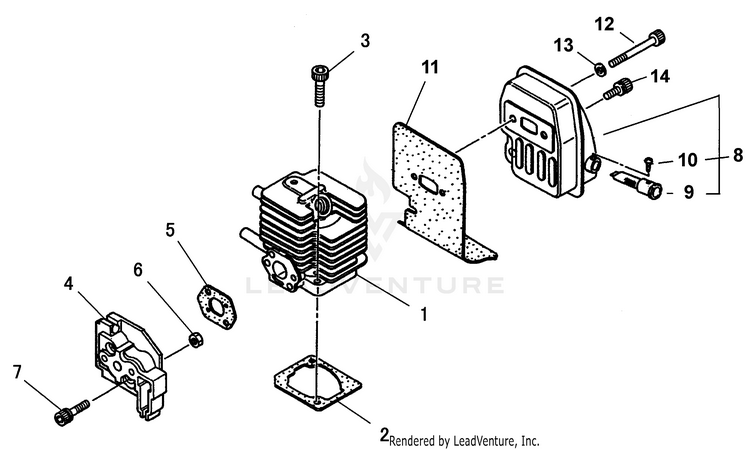

Cylinder / Intake / Muffler

...
...
1
CYLINDER 20016-12112 ECH-A130001391
...
2
GASKET, CYLINDER 20016-12120 ECH-V100000490
...
3
BOLT 5x25 01020-05250 ECH-90010505025
...
4
INSULATOR 68501-12210 ECH-A200000500
...
5
GASKET, INTAKE 20016-12222 ECH-V103001200
...
6
NUT M5x6.3 20011-12260 ECH-V263000260
...
7
BOLT M5x30 11022-05305 ECH-V203000581
...
8
MUFFLER ASSY 70135-15100 ECH-A030000120
...
9
SCREEN, SPARK ARRESTER 70103-15150 ECH-A310000260
...
10
SCREW, TAPPING 3x6 01270-03062 ECH-9137403006
...
11
HEAT SHIELD, EXHAUST 20016-15123 ECH-V104001500
...
12
BOLT M5x50 01020-05500 ECH-90010505050
...
13
WASHER, FLAT 5.5x10x0.8 01610-05080 ECH-90060000005
...
14
BOLT 5x12 01020-05120 ECH-90010505012
...
...
...
...
...
