Echo ES726 S/N: 9029001 - 9039900 Sprayer

Model: ES726 S/N: 9029001 - 9039900

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

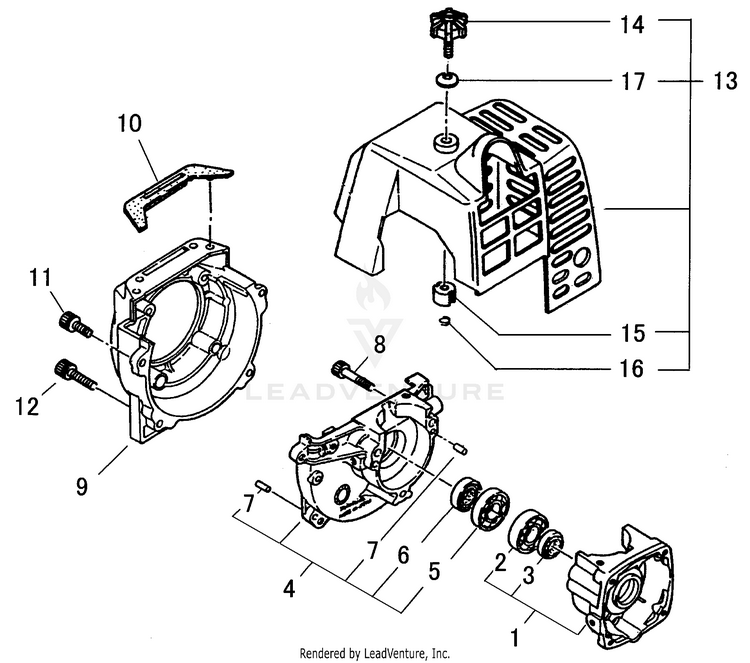

Crankcase / Engine Cover / Fan Cover

...
...
1
CRANKCASE ASSY, S 20035-21101 ECH-P021018090
...
2
BEARING, BALL 6001 C3 12900-60010 ECH-V592000310
...
3
SEAL, OIL 12 22150-21250 ECH-V505000140
...
4
CRANKCASE ASSY, M 20035-21203 ECH-P021018110
...
5
BEARING, BALL 6001 C3 12900-60010 ECH-V592000310
...
6
SEAL, OIL 12 20000-21211 ECH-V505000080
...
7
PIN, LOCATING 4x8 12492-40080 ECH-90033040080
...
8
BOLT 5x25 01020-05250 ECH-90010505025
...
9
COVER, FAN 38500-31110 ECH-A172001040
...
10
CUSHION 20110-31130 ECH-V420002350
...
11
BOLT 5x16 11022-05160 ECH-V203000591
...
12
BOLT M5x35 11022-05350 ECH-90016205035
...
13
COVER KIT, ENGINE 38500-32010 ECH-A160002240
...
14
THUMBSCREW 20018-31251 ECH-V299000420
...
15
INSULATOR 5 MM 20018-31260 ECH-V353000430
...
16
CLIP 20018-31270 ECH-V490000680
...
17
WASHER, CONE M6 20024-81790 ECH-V347000030
...
...
...
...
...
