Echo ES726 S/N: 9029001 - 9039900 Sprayer

Model: ES726 S/N: 9029001 - 9039900

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

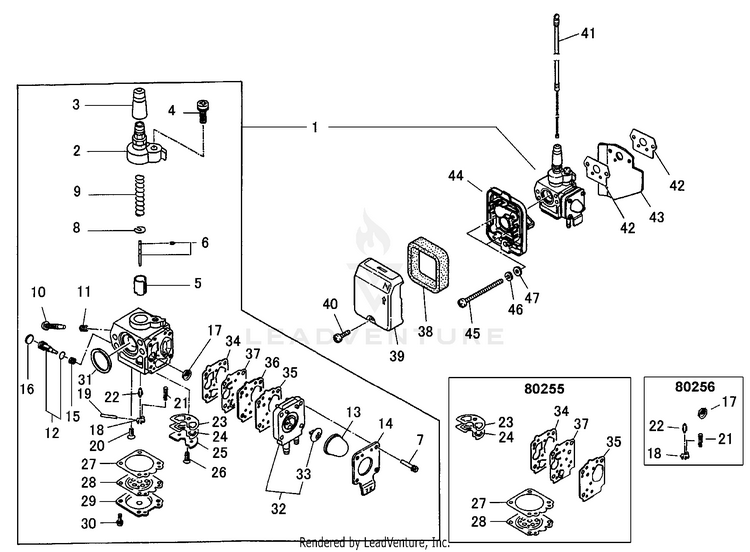

Carburetor

...
...
1
CARBURETOR, ES726 68501-81010 ECH-A021003170
...
2
CAP, CARBURETOR 38500-81321 ECH-P004002640
...
3
GROMMET 72920-81130 ECH-12417411120
...
4
SCREW 38500-81330 ECH-P004002650
...
5
VALVE, SLIDE 68501-81360 ECH-P004002820
...
6
NEEDLE, JET 68501-81490 ECH-P004002860
...
7
SCREW M3x14 20019-81680 ECH-P004001730
...
8
WASHER, SPRING SUPPORT 20000-81150 ECH-12411505530
...
9
SPRING 20011-81140 ECH-P004000440
...
10
SCREW, IDLE ADJUST 20019-81310 ECH-12412913410
...
11
SPRING 72920-81820 ECH-12416011120
...
12
SCREW, MAIN ADJUST 68501-81410 ECH-P004002850
...
13
BULB, PURGE 68501-81460 ECH-12438055430
...
14
COVER, PUMP 68501-81470 ECH-12434255430
...
15
SPRING 68501-81440 ECH-P004000600
...
16
PLATE 68501-81390 ECH-P004000570
...
17
SCREEN, FUEL INLET 68501-81480 ECH-P004001640
...
18
LEVER, METERING 20019-81450 ECH-12432121330
...
19
PIN, METERING LEVER 20011-81460 ECH-12433221330
...
20
SCREW M3x8 20011-81470 ECH-P004001350
...
21
SPRING 20040-81430 ECH-12433149930
...
22
VALVE, INLET NEEDLE 20019-81440 ECH-P004001660
...
23
GASKET 20019-81580 ECH-12437512710
...
24
VALVE, CHECK 20019-81570 ECH-12437453630
...
25
PLATE 68501-81370 ECH-P004002830
...
26
SCREW M3x8 20011-81470 ECH-P004001350
...
27
GASKET, METERING DIAPHRAGM 20019-81510 ECH-P004001670
...
28
DIAPHRAGM, METERING 68501-81380 ECH-P004002840
...
29
COVER, DIAPHRAGM 20019-81530 ECH-P004001690
...
30
SCREW M3x8 20000-81540 ECH-P004001000
...
31
RING, PACKING 20019-81280 ECH-12414913410
...
32
PUMP COVER 68501-81320 ECH-P004003710
...
33
VALVE 68501-81340 ECH-12437455430
...
34
GASKET, FUEL PUMP 20019-81630 ECH-12436112710
...
35
GASKET, FUEL PUMP 20019-81660 ECH-12436312710
...
36
PLATE, FUEL PUMP 20019-81610 ECH-12436212710
...
37
DIAPHRAGM, FUEL PUMP 68501-81450 ECH-12436440830
...
38
FILTER, AIR 38500-82120 ECH-A226000620
...
39
COVER, AIR FILTER 38500-82130 ECH-A232000710
...
40
SCREW M5x16 11206-05160 ECH-9157405016
...
41
CABLE, THROTTLE 68501-98010 ECH-V043000870
...
42
GASKET, CARBURETOR 20019-83410 ECH-V103000770
...
43
GASKET, INTAKE 20112-81530 ECH-V103001080
...
44
CASE, AIR FILTER 38500-82110 ECH-A225000400
...
45
SCREW 38500-82310 ECH-V253000350
...
46
WASHER, SPRING 5 01600-05131 ECH-90060500005
...
47
WASHER, FLAT 5.5x10x0.8 01610-05080 ECH-90060000005
...
47
DIAPHRAGM/GASKET KIT 80255 ECH---
...
47
REPAIR KIT 80256 ECH---
...
...
...
...
...
