Echo ES726 S/N: 9029001 - 9039900 Sprayer

Model: ES726 S/N: 9029001 - 9039900

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

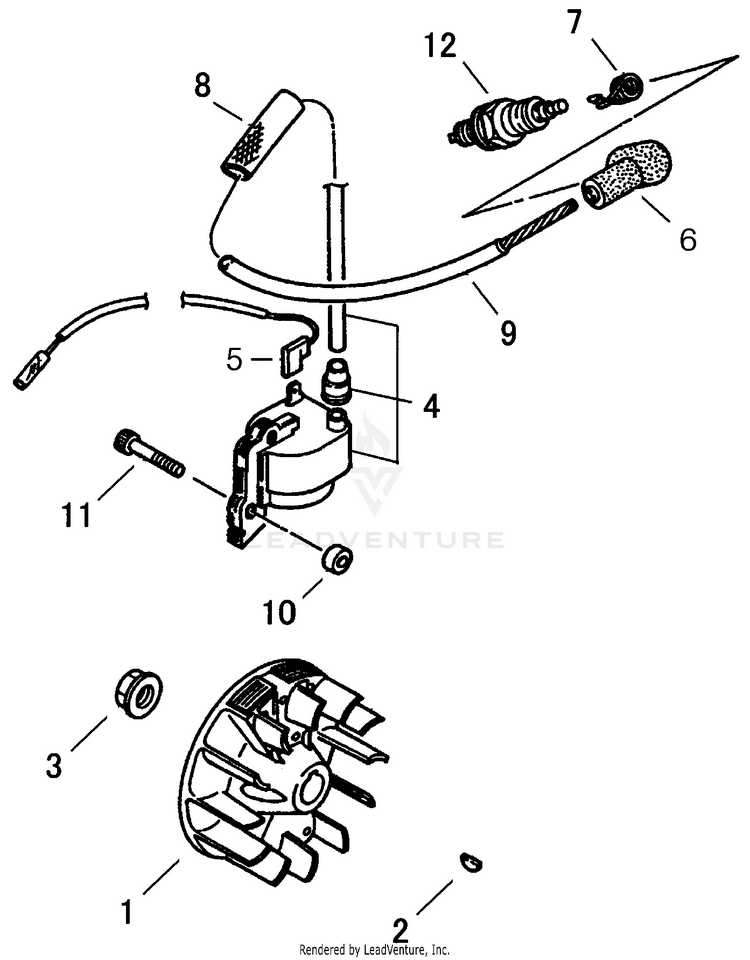

Flywheel / Ignition

...
...
1
FLYWHEEL 38500-71110 ECH-A409000520
...
2
KEY, WOODRUFF 3x10 02403-03100 ECH-9311503010
...
3
NUT M8 20035-71220 ECH-V265000140
...
4
COIL ASSY, IGNITION 38500-71020 ECH-A411000650
...
5
LEAD - IGNITION 14352-02300 ECH-V485001420
...
6
CAP, SPARK PLUG 22102-72220 ECH-A427000100
...
7
TERMINAL, SPARK PLUG 20000-72230 ECH-A426000010
...
8
TUBE, IGNITION COIL 20016-71651 ECH-V475005140
...
9
TUBE, INSULATOR 20016-71660 ECH-V475004840
...
10
INSULATOR 4.2x11x6 70030-71620 ECH-V322000040
...
11
BOLT 4x26 11024-04261 ECH-9111304026
...
12
SPARK PLUG - BMR6A 13000-13406 ECH-15901010130
...
...
...
...
...
