Echo EGI-1200 S/N: EGi-190628-A0000001 - 190628-A9999999 Generator

Model: EGI-1200 S/N:EGi-190628-A0000001--190628-A9*

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

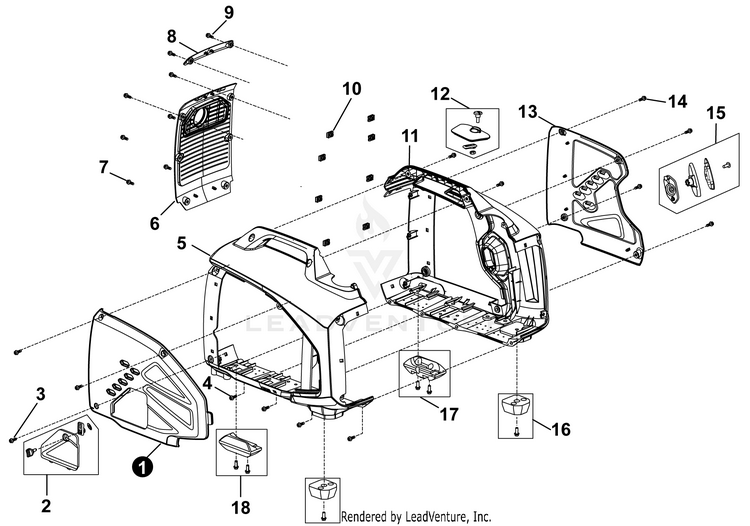

Frame, Panels and Doors

...
...
1
PANEL, LEFT SIDE ECH-YH479000180
...
2
DOOR, LEFT MAINTENANCE ECH-YH479000250
...
3
BOLT ECH-YH435000080
...
4
BOLT ECH-YH435000080
...
5
HOUSING, LEFT SIDE ECH-YH479000200
...
6
COVER, MUFFLER SIDE ECH-YH479000230
...
7
BOLT ECH-YH435000090
...
8
PLATE, BRANDING ECH-YH479000240
...
9
BOLT ECH-YH435000090
...
10
NUT ECH-YH450000050
...
11
HOUSING, RIGHT SIDE ECH-YH479000210
...
12
DOOR, SPARK PLUG MAINTENANCE ECH-YH479000220
...
13
PANEL, RIGHT SIDE ECH-YH479000190
...
14
BOLT ECH-YH435000080
...
15
ROPE GUIDE ASSY., STARTING ECH-YH463000020
...
16
FOOT, FRAME SUPPORT ECH-YH468000220
...
17
FOOT, FRAME SUPPORT (RIGHT) ECH-YH468000240
...
18
FOOT, FRAME SUPPORT (LEFT) ECH-YH468000230
...
...
...
...
...
