Echo EGI-1200 S/N: EGi-190628-A0000001 - 190628-A9999999 Generator

Model: EGI-1200 S/N:EGi-190628-A0000001--190628-A9*

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

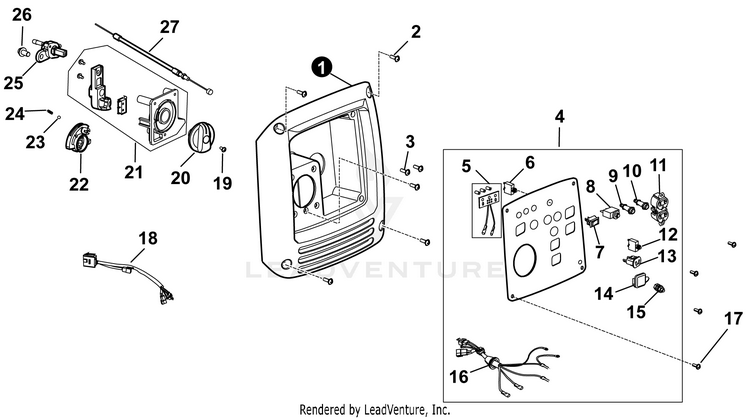

Control Panel Assembly

...
...
1
HOUSING, PANEL ECH-YH479000160
...
2
BOLT ECH-YH435000060
...
3
SCREW, CROSS GROOVE PAN ECH-YH415000150
...
4
PANEL, CONTROL Includes Items 5 - 16 ECH-YH479000150
...
5
INDICATOR ASSY. ECH-YH310000000
...
6
BREAKER, CIRCUIT ECH-YH318000000
...
7
SWITCH, AUTO THROTTLE ECH-YH321000010
...
8
SWITCH, RESET ECH-YH321000020
...
9
SOCKET, PARALELL (RED) ECH-YH304000000
...
10
SOCKET, PARALELL (BLACK) ECH-YH304000010
...
11
SOCKET, POWER SUPPLY ECH-YH304000020
...
12
SWITCH, DC CHARGE RESET ECH-YH321000030
...
13
SOCKET, D.C. CHARGE ECH-YH304000030
...
14
SOCKET, USB PORT ECH-YH304000040
...
15
TERMINAL, GROUND BOLT ECH-YH304000050
...
16
HARNESS, CONTROL PANEL WIRING ECH-YH601000000
...
17
SCREW, CROSS GROOVE PAN ECH-YH415000140
...
18
REGULATOR, VOLTAGE ECH-YH314000000
...
19
SCREW ECH-YH415000160
...
20
KNOB ECH-YH470000090
...
21
SWITCH ASSY. ECH-YH321000000
...
22
COVER, BOARD ECH-YH479000170
...
23
BALL, STEEL ECH-YH453000010
...
24
SPRING, STOPPER ADJUSTING ECH-YH476000040
...
25
VALVE, FUEL SHUT OFF ECH-YH470000110
...
26
BOLT ECH-YH435000070
...
27
CABLE, CHOKE ECH-YH470000100
...
...
...
...
...
