Echo EG-750 Electric Generator

Model: EG-750

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

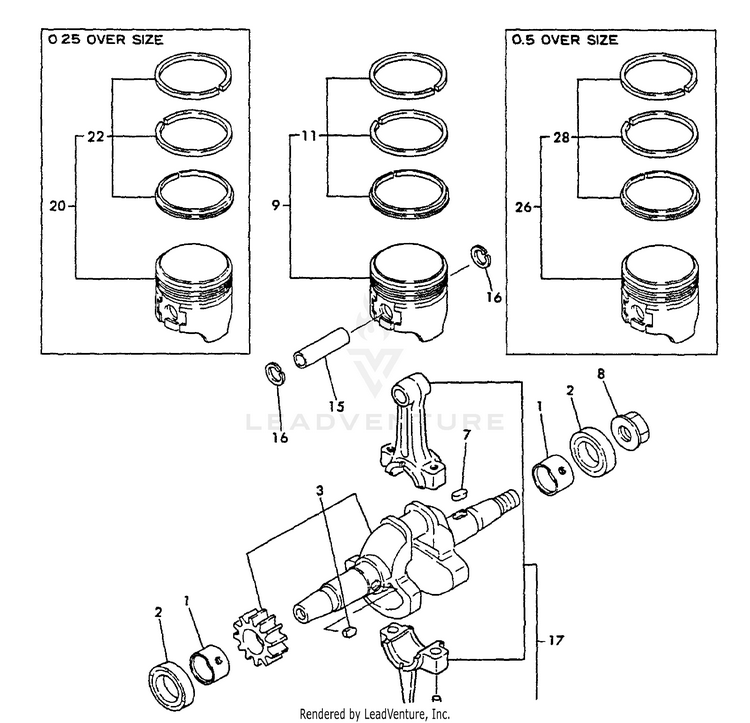

Bearing, Crankshaft, Piston, Rod

...
...
1
BEARING, MAIN ECH-Y16066402100
...
2
SEAL, OIL ECH-Y16051002220
...
3
CRANKSHAFT ASSY ECH-Y76066721700
...
7
KEY - 4x10 ECH-Y16061021290
...
8
NUT - 10 - FLANGE ECH-Y26376100002
...
9
PISTON ASSY ECH-Y16066422010
...
11
PISTON RING SET ECH-Y76066422500
...
15
PIN, PISTON ECH-Y16066422300
...
16
RING, RETAINING - 11 ECH-Y22252000110
...
17
CONNECTING ROD ASSY ECH-Y76066423700
...
19
BOLT, ROD ECH-Y16066423200
...
20
PISTON ASSY,O.S.= 0.25 ECH-Y16066422470
...
22
RING SET O.S. = 0.25 ECH-Y76066422540
...
26
PISTON ASSY,O.S.= 0.5 ECH-Y16066422480
...
28
RING SET O.S. = 0.5 ECH-Y76066422550
...
...
...
...
...
