Echo EG-750 Electric Generator

Model: EG-750

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

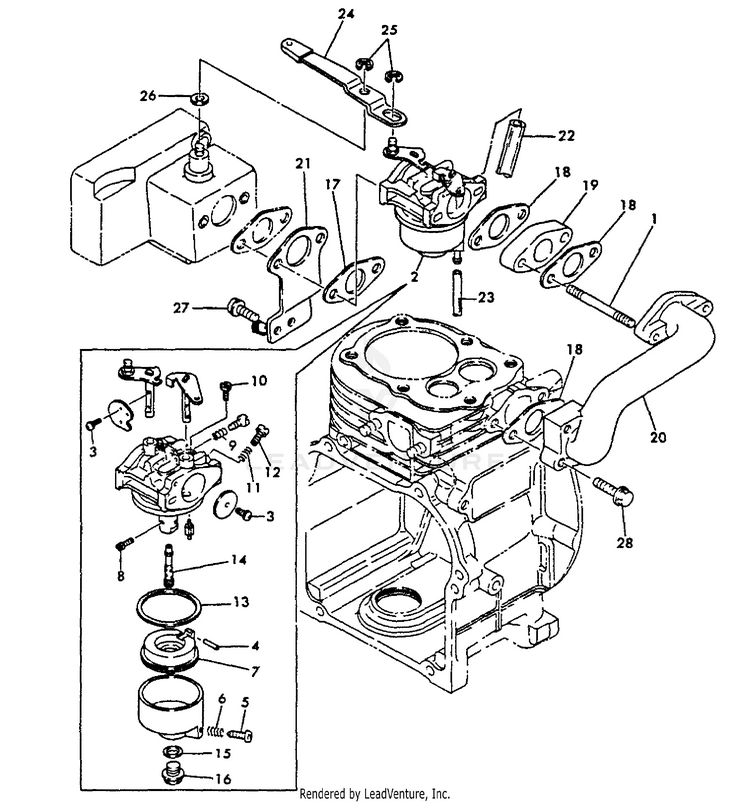

Carburetor

...
...
1
BOLT - 6x82 ECH-Y16066756860
...
2
CARBURETOR ECH-Y16066756011
...
3
SCREW ECH-Y16066756760
...
4
PIN ECH-Y16066756630
...
5
SCREW ECH-Y16061056090
...
6
SPRING ECH-Y18123056380
...
7
FLOAT ASSY ECH-Y16066756620
...
8
JET, MAIN ECH-Y16066756650
...
9
SPRING ECH-Y18113056640
...
10
JET, PILOT ECH-Y16066756740
...
11
SPRING ECH-Y18113056640
...
12
SCREW, ADJUSTER ECH-Y16066756750
...
13
GASKET ECH-Y16051056610
...
14
NOZZLE, MAIN ECH-Y16066756800
...
15
WASHER ECH-Y16091056550
...
16
BOLT ECH-Y16091056660
...
17
GASKET ECH-Y16051056150
...
18
GASKET, INTAKE ECH-Y16066756150
...
19
SPACER, MANIFOLD ECH-Y16066756160
...
20
INTAKE MANIFOLD ECH-Y16066756850
...
21
SUPPORT ECH-Y16066756870
...
22
HOSE ECH-Y16066756880
...
23
HOSE ECH-Y16073056880
...
24
LEVER, CHOKE ECH-Y16066756900
...
25
RING, RETAINING - 5 ECH-Y22272000050
...
26
NYLON PACKING -6 ECH-Y23418060000
...
27
SCREW - 6x12 ECH-Y26023060122
...
28
BOLT - 6x20 - PLATED ECH-Y26106060252
...
29
NEEDLE ASSY NOT SHOWN - Includes ITEM 7 ECH-Y16051056250
...
...
...
...
...
