Echo EG-750 Electric Generator

Model: EG-750

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

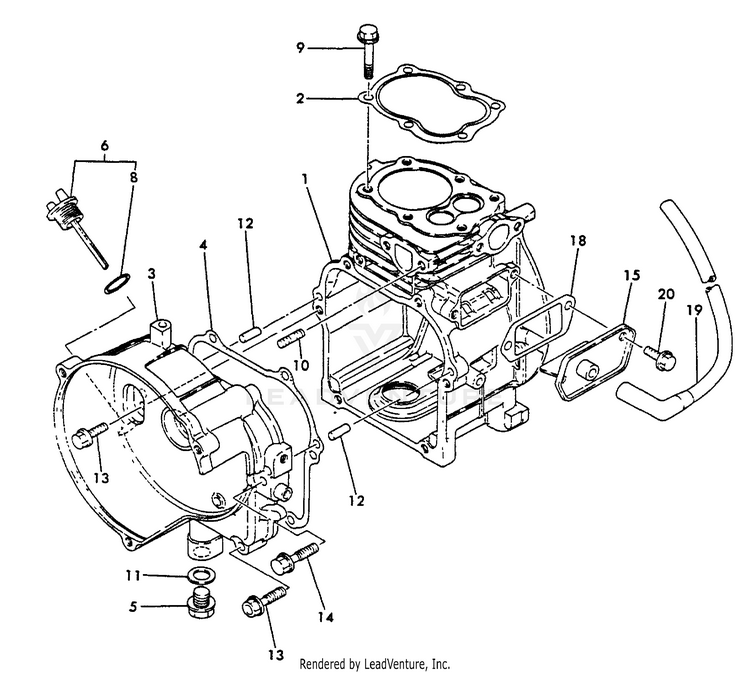

Breather, Cylinder Body

...
...
1
BODY, CYLINDER ECH-Y16066701010
...
2
GASKET, HEAD ECH-Y16066401330
...
3
COVER, CRANKCASE ECH-Y16066701400
...
4
GASKET, CRANKCASE ECH-Y16066401410
...
5
PLUG, DRAIN ECH-Y16061001690
...
6
CAP, OIL ECH-Y16056001740
...
8
O-RING 1A P-15.0 ECH-Y24311000150
...
9
BOLT - 6x35 ECH-Y16061004360
...
10
BOLT - 6x16 ECH-Y16061004620
...
11
GASKET ECH-Y10420059170
...
12
PARALLEL PIN 6x16 ECH-Y22312060160
...
13
BOLT - 6x30 ECH-Y26476060252
...
14
BOLT - 6x30 ECH-Y26476060302
...
15
BREATHER ASSY ECH-Y16066403010
...
18
GASKET, BREATHER ECH-Y16066403070
...
19
PIPE, BREATHER ECH-Y16066703180
...
20
BOLT - 6x8 - PLATED ECH-Y26476060142
...
...
...
...
...
