Echo EG-750 Electric Generator

Model: EG-750

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

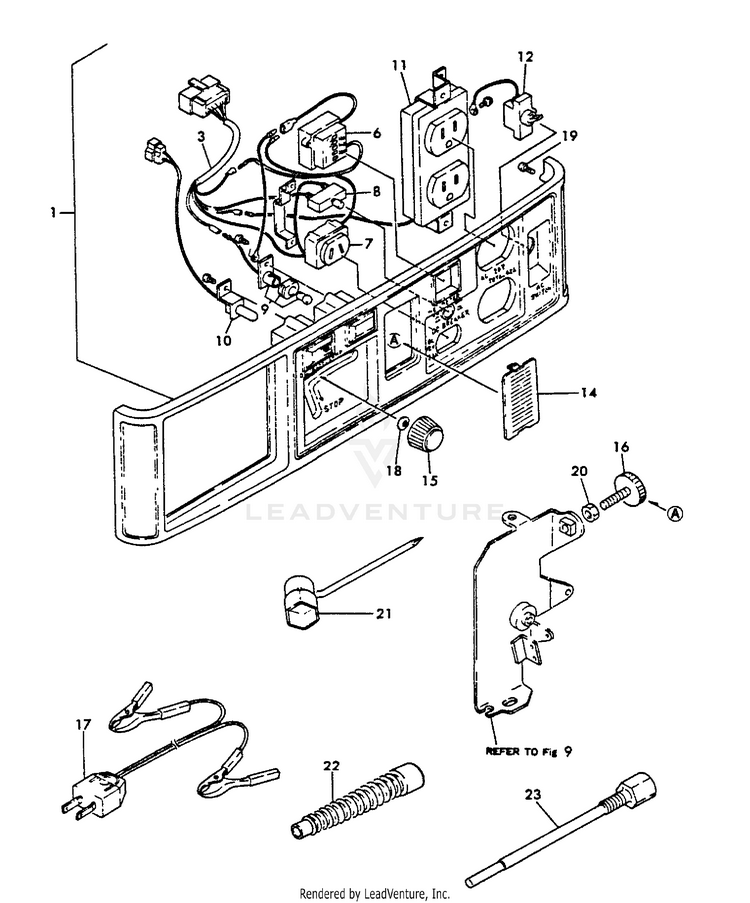

Electrical Panel, Accessories

...
...
1
PANEL BOARD ASSY ECH-Y78321091500
...
3
HARNESS, WIRE ECH-Y18321091120
...
6
FREQUENCY METER ECH-Y18321091320
...
7
DC CONSENT ECH-Y18321091330
...
8
DC PROTECTOR ECH-Y18321091340
...
9
LAMP, PILOT ECH-Y18321091350
...
10
LAMP, OIL ALERT ECH-Y18321091360
...
11
AC RECEPTACLE ECH-Y18321091380
...
12
AC BREAKER ECH-Y18321091390
...
14
BLIND COVER ECH-Y18321091090
...
15
KNOB ECH-Y18321091210
...
16
SCREW, ADJUSTER ECH-Y18321091250
...
17
CABLE ECH-Y18321091880
...
18
WASHER 4 ECH-Y22287040000
...
19
SCREW - 4x8 ECH-Y16061004260
...
20
LOCKNUT - 6 - PLATED ECH-Y26757060002
...
21
BOX SPANNER ECH-Y16066792700
...
22
OIL FUNNEL ECH-Y18321091890
...
23
TOOL, ROTOR REMOVAL ECH-Y18321092350
...
...
...
...
...
