Echo EG-750 Electric Generator

Model: EG-750

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

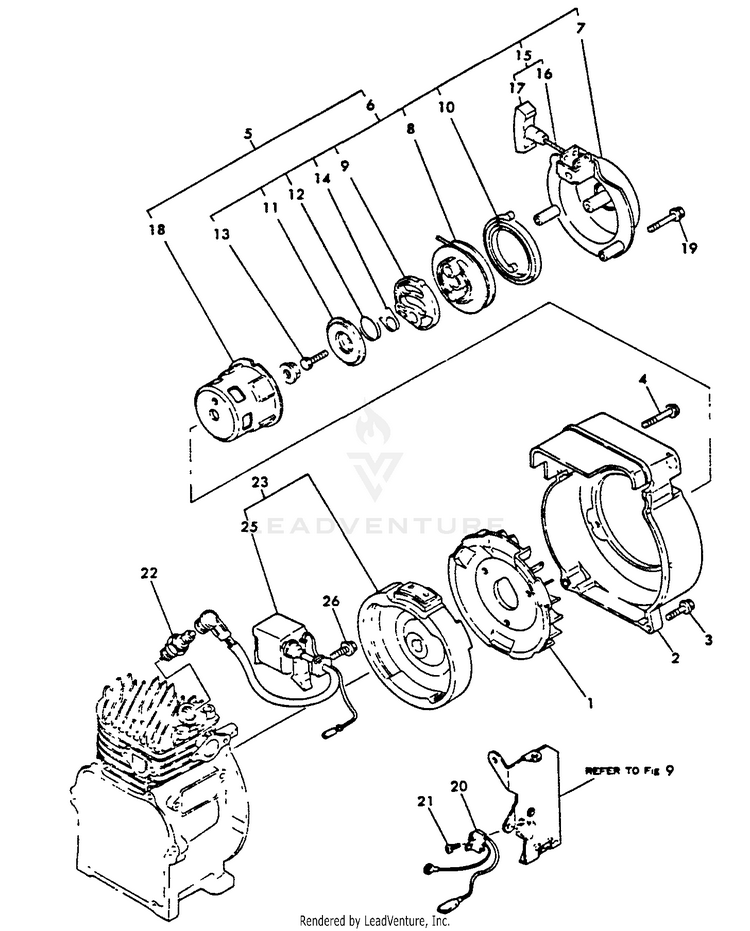

Starter, Ignition, Fan Housing

...
...
1
FAN ECH-Y16066445010
...
2
COVER, FAN ECH-Y16066745110
...
3
BOLT - 6x30 ECH-Y26476060252
...
4
BOLT - 6x30 ECH-Y26476060302
...
5
STARTER ASSY ECH-Y16066776050
...
6
STARTER ASSY, RECOIL ECH-Y16066776250
...
7
STARTER CASE ASSY ECH-Y16066776510
...
8
PULLEY ECH-Y16066776520
...
9
RATCHET ECH-Y16066076530
...
10
SPRING ECH-Y16066776540
...
11
PLATE, FRICTION ECH-Y16066776580
...
12
SPRING, FRICTION ECH-Y16066776560
...
13
BOLT ECH-Y16066776570
...
14
SPRING, RETURN ECH-Y16066776550
...
15
STARTER ROPE ASSY ECH-Y16066776610
...
16
ROPE, STARTER ECH-Y16066776620
...
17
KNOB, STARTER ECH-Y16066776630
...
18
PULLEY, STARTER ECH-Y16066776590
...
19
BOLT - 6x35 - PLATED ECH-Y26106060352
...
20
SWITCH, STOP ECH-Y16066777250
...
21
SCREW - 2x10 - TAPPING ECH-Y22857200100
...
22
SPARK PLUG - BPM-8Y ECH-Y16052078010
...
23
FLYWHEEL MAGNETO ASSY ECH-Y16066778060
...
25
COIL, IGNITION ECH-Y16066778510
...
26
BOLT - 6x30 ECH-Y26476060252
...
...
...
...
...
