Echo EG-750 Electric Generator

Model: EG-750

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

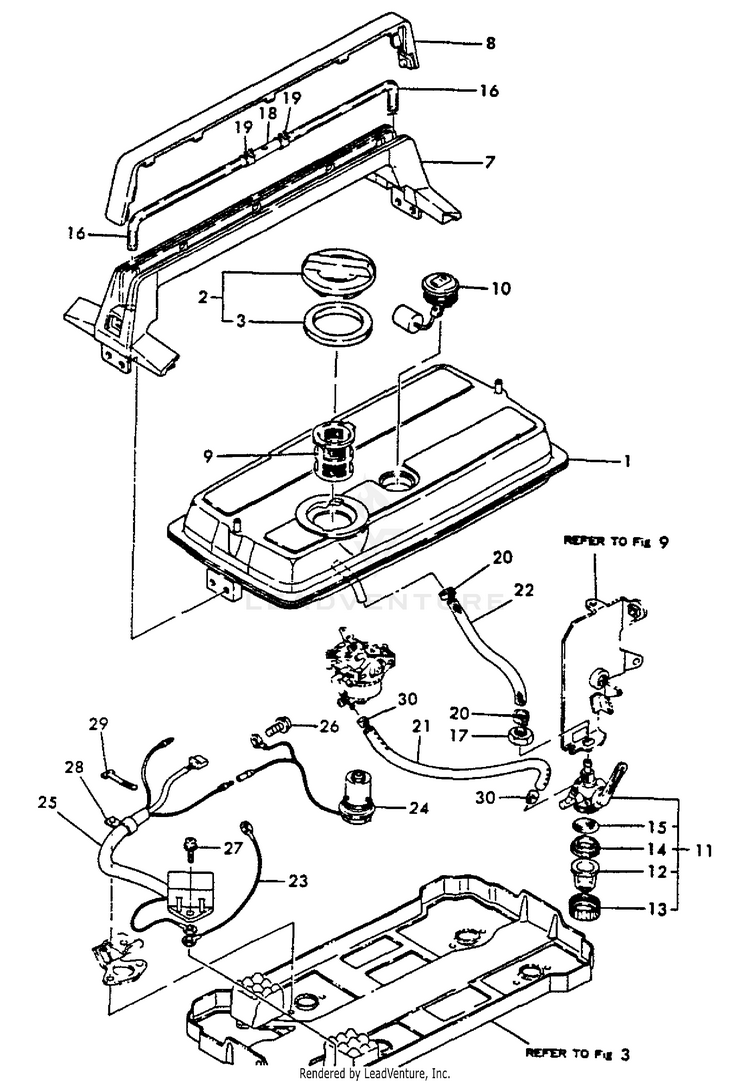

Fuel System, Oil Sensor

...
...
1
TANK ASSY, FUEL ECH-Y78321055720
...
2
CAP ASSY, FUEL TANK ECH-Y18321055030
...
3
GASKET, CAP ECH-Y18321055090
...
7
GRIP ASSY, FUEL TANK ECH-Y18321055051
...
8
CAP, GRIP ECH-Y18321055081
...
9
FILTER, FUEL ECH-Y18321055110
...
10
GAUGE, FUEL ECH-Y18321055150
...
11
COCK ASSY, FUEL ECH-Y18321055300
...
12
BOWL, STRAINER ECH-Y16071055390
...
13
RETAINER ECH-Y16071055360
...
14
GASKET ECH-Y16071055370
...
15
FILTER, FUEL ECH-Y16021055380
...
16
HOSE ECH-Y18321055140
...
17
LOCKNUT - 12 - PLATED ECH-Y26776120002
...
18
JOINT ECH-Y18321055130
...
19
CLAMP, HOSE - 10 ECH-Y12406077680
...
20
CLAMP, HOSE ECH-Y10699044660
...
21
PIPE, FUEL ECH-Y16066759360
...
22
PIPE, FUEL ECH-Y16066759350
...
23
WIRE A ECH-Y16066778210
...
24
SENSOR, OIL LEVEL ECH-Y16066778800
...
25
UNIT, OIL SENSOR ECH-Y16066778810
...
26
SCREW - 6x12 ECH-Y26023060122
...
27
SCREW - 6x12 ECH-Y26023060122
...
28
CLAMP ECH-Y16026078700
...
29
CLAMP ECH-Y16037078950
...
30
CLAMP, HOSE - 10 ECH-Y12406077680
...
...
...
...
...
