Echo EG-650 Electric Generator

Model: EG-650

Save
 Part Not Listed?Part Not Listed?
product name

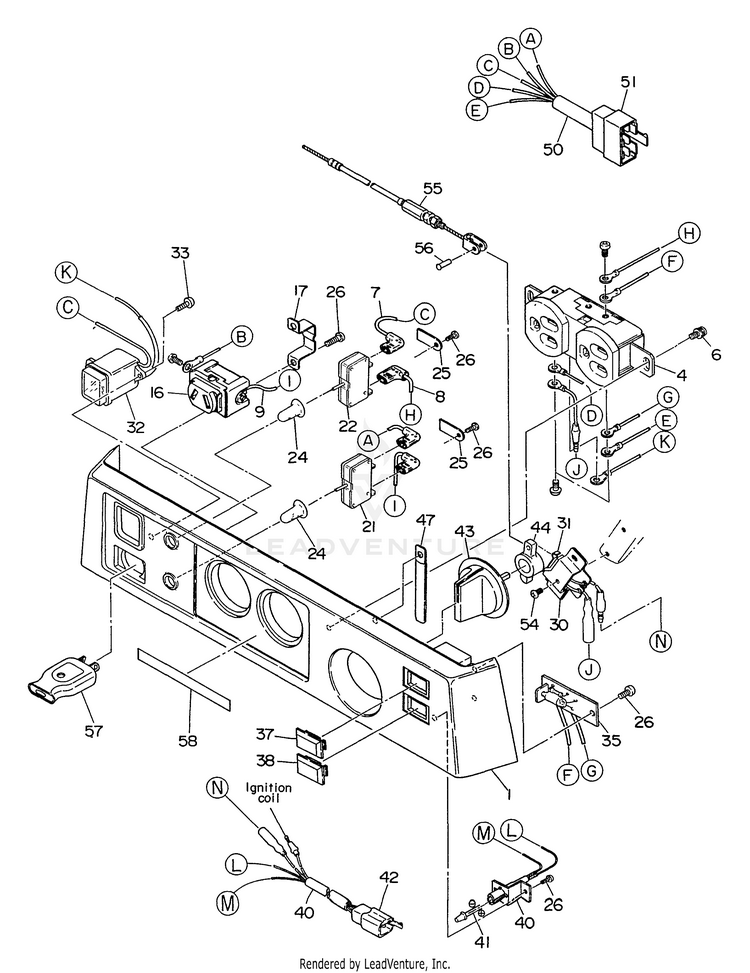

Electrical Panel

...
...
1
CONTROL PANEL ASSY (Mark...W). FOR 60Hz-120V. Includes items 1 thru 51 ECH-103834130201
...
1
CONTROL PANEL ASSY ECH-103834130201
...
4
AC RECEPTACLE ECH-103834061008
...
6
SCREW ECH-101387025108
...
7
WIRE 19, COMPL. ECH-103834070808
...
8
WIRE 20, COMPL. ECH-103834070908
...
9
WIRE 5, COMPL. ECH-103584066608
...
16
DC RECEPTACLE ECH-103584110508
...
17
CLAMP ECH-103584110608
...
21
CIRCUIT BREAKER(10A) ECH-103834063308
...
22
CIRCUIT BREAKER (3.5A) FOR 60Hz.-120V ECH-103834063108
...
24
CAP ECH-103834075008
...
25
CLAMP ECH-103584065508
...
26
SCREW - TAPPING ECH-103584066008
...
30
MICRO SWITCH, COMP. Includes item 31 ECH-103584111008
...
31
MICRO SWITCH ECH-103584064308
...
32
VOLT METER ECH-103834064408
...
33
SCREW - TAPPING ECH-103584066108
...
35
LAMP ECH-103834069108
...
37
CAP - GREEN ECH-103584065108
...
38
CAP - CLEAR ECH-103584113308
...
40
HARNESS, WIRE, COMPL. Includes items 41 and 42 ECH-103584113008
...
41
LED ECH-103584113108
...
42
CONNECTOR ECH-103584113208
...
43
KNOB ECH-103584111118
...
44
LEVER ECH-103584111208
...
47
CLAMP ECH-103584115008
...
50
HARNESS, WIRE Includes item 51 ECH-103834065308
...
51
CONNECTOR ECH-103582102108
...
54
SCREW ECH-100043603080
...
55
CHOKE WIRE, COMPL. Includes ITEM 56 ECH-103584560101
...
56
SCREW ECH-103584515008
...
57
DC PLUG ECH-103589500303
...
58
LABEL - HZ-V ECH-103839531703

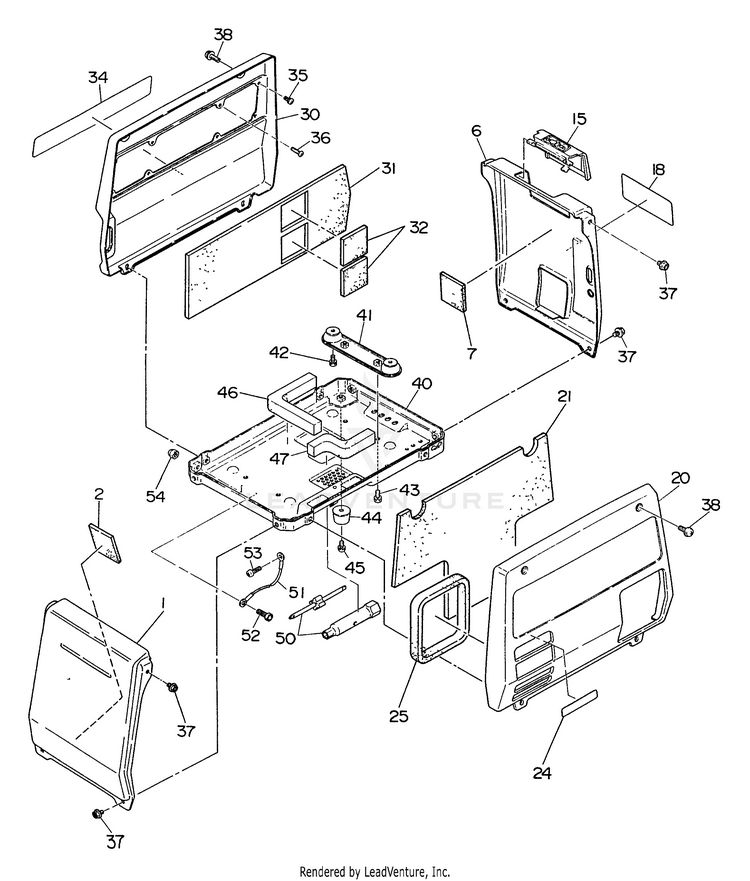

External Covers

...
...
1
FRONT COVER, COMPL. Includes ITEM 2 ECH-103585022111
...
2
RUBBER PLATE 1 ECH-103585540103
...
6
REAR COVER ASSY Includes ITEM 7 ECH-103835070101
...
7
RUBBER PLATE 1 ECH-103585540103
...
15
PLUG COVER ECH-103835510103
...
18
LABEL - SPEC. FOR 60HZ-120V ECH-103839311303
...
20
SIDE COVER (R), COMPL. Includes ITEM 21 ECH-103835111001
...
21
SPONGE (R) ECH-103835530113
...
24
LABEL - SPARK ARRESTER ECH-103589530403
...
25
SEAL, EXHAUST ECH-103835550103
...
30
SIDE COVER (L), COMPL. Includes item 31 and 32 ECH-103585350701
...
31
SPONGE (L) ECH-103835530413
...
32
RUBBER PLATE 1 ECH-103585540103
...
34
LABEL ECH-103839311203
...
35
SCREW ECH-100043404100
...
36
SCREW - TAPPING ECH-100150040031
...
37
BOLT - FLANGE ECH-100110060060
...
38
SCREW ECH-103585520103
...
40
BASE PLATE, COMPL. ECH-103583060151
...
41
MOUNT ASSY ECH-103583010111
...
42
BOLT ECH-100011406120
...
43
BOLT ECH-100011605100
...
44
MOUNT(B), COMPL. ECH-103583020101
...
45
SCREW ECH-100043505100
...
46
SEAL 1(BASE) ECH-103833610103
...
47
LABEL - GENERATOR ECH---
...
50
SERVICE TOOL KIT ECH-103589030110
...
51
EARTH WIRE, COMPL ECH-103583510201
...
52
BOLT ECH-100016506120
...
53
SCREW - PAN HEAD ECH-100043106080
...
54
CROWN NUT ECH-100024306001

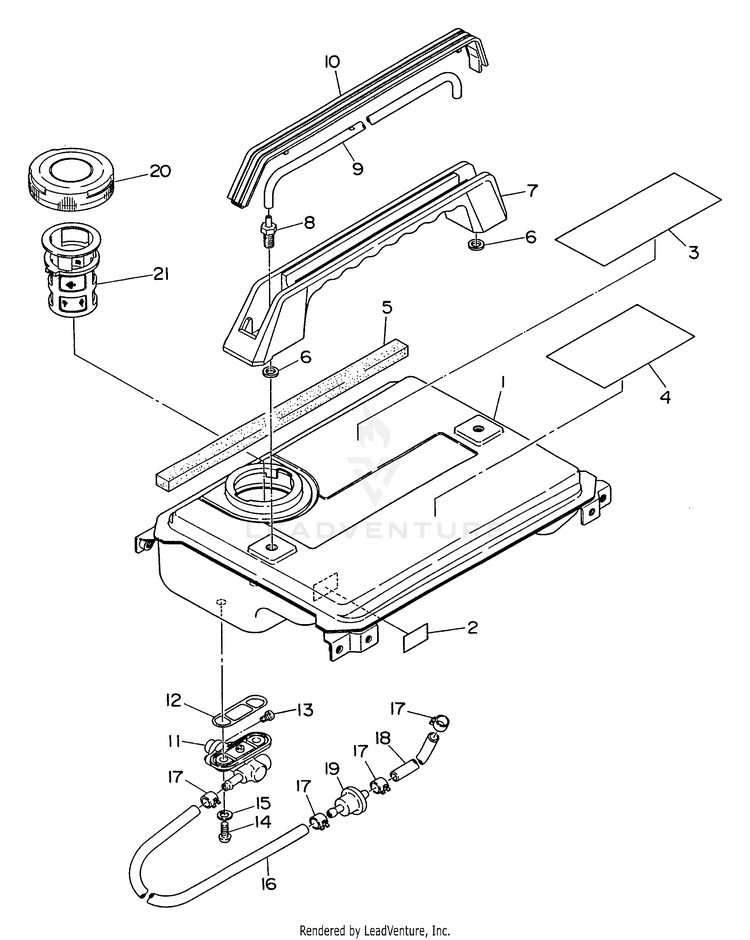

Fuel System, Handle

...
...
1
TANK, FUEL ECH-103586120101
...
2
FELT, TANK ECH-103586540113
...
3
LABEL - CAUTION ECH-100732003221
...
4
LABEL - DANGER ECH-103909900103
...
5
SEAL, TANK ECH-103586540203
...
6
O-RING ECH-103586550103
...
7
HANDLE ASSY ECH-103586510121
...
8
BOLT, TANK ECH-103586530211
...
9
PIPE, BREATHER ECH-103586570103
...
10
HANDLE COVER ECH-103586520113
...
11
FILTER, FUEL Includes ITEM 12 ECH-100642004702
...
12
JOINT PACKING ECH-100642004630
...
13
BOLT ECH-100115040010
...
14
SCREW ECH-100043106140
...
15
GASKET, FIBER ECH-100037106000
...
16
RUBBER PIPE (4.5 DIA.x11 DIA.x160 MM) ECH-100851040000
...
17
CLAMP, HOSE ECH-100561080020
...
18
RUBBER PIPE (4.5 DIA.x11 DIA.x160 MM) ECH-100851040000
...
19
FILTER, FUEL ECH-103586280101
...
20
CAP ASSY ECH-100430430041
...
21
FILTER, FUEL ECH-100641360020

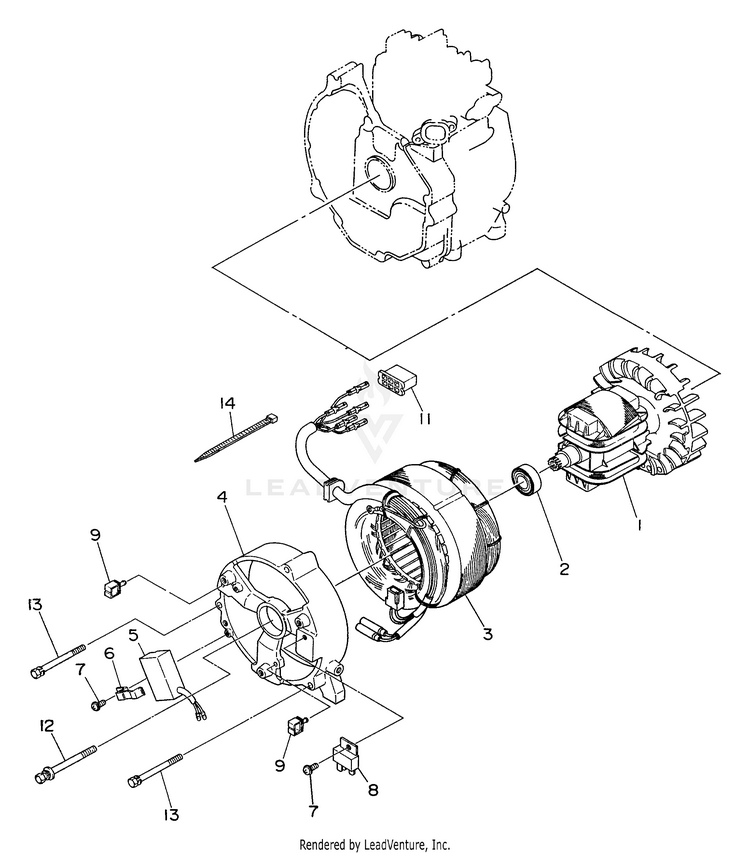

GENERATOR

...
...
1
ROTOR ASSY Includes ITEM 2 ECH-103832116111
...
2
BEARING, BALL ECH-103582101508
...
3
STATOR ASSY - 60HZ-120V Includes items 4 thru 11 ECH-103832235101
...
5
CONDENSER ECH-103832100008
...
6
BAND ECH-103832105208
...
7
SCREW ECH-103832105108
...
8
RECTIFIER ECH-103582100608
...
9
CLAMP ECH-103832105008
...
11
CONNECTOR ECH-103582102008
...
12
BOLT ECH-100130080090
...
13
BOLT ECH-100130060080
...
14
WIRE BAND ECH-100563000020
...
...
...
...
...
