Echo EG-550 Electric Generator

Model: EG-550

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

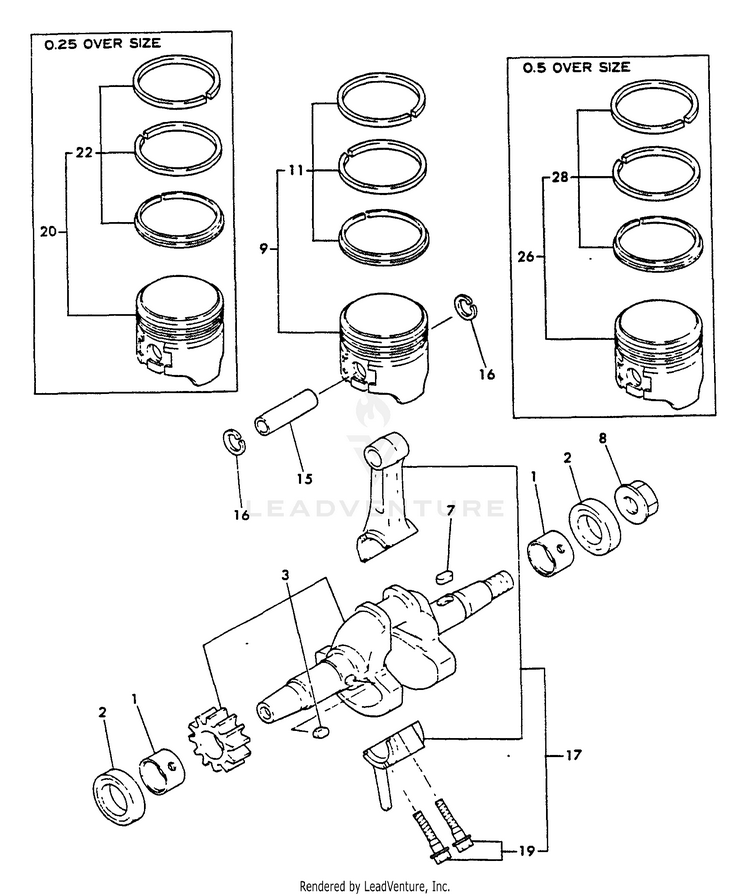

Bearing, Crankshaft, Piston, Rod

...
...
1
MAIN BEARING ECH-Y16056002100
...
2
SEAL, OIL ECH-Y16051002220
...
3
CRANKSHAFT ASSY ECH-Y76056721700
...
7
KEY - 4x10 ECH-Y16061021290
...
8
NUT - 10 - FLANGE ECH-Y26376100002
...
9
PISTON ASSY ECH-Y16056022010
...
11
PISTON RING SET ECH-Y76056022500
...
15
PIN, PISTON ECH-Y16056022300
...
16
RING, RETAINING - 10 ECH-Y22252000100
...
17
CONNECTING ROD ASSY ECH-Y76056023700
...
19
BOLT, ROD ECH-Y16066423200
...
20
PISTON ASSY O.S. = 0.2 ECH-Y16056022470
...
22
RING SET O.S. = 0.25 ECH-Y76056022540
...
26
PISTON ASSY O.S. = O.S ECH-Y16056022480
...
28
RING SET O.S. = 0.5 ECH-Y76056022550
...
...
...
...
...
