product name

Echo EG-550 Electric Generator

Model: EG-550

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

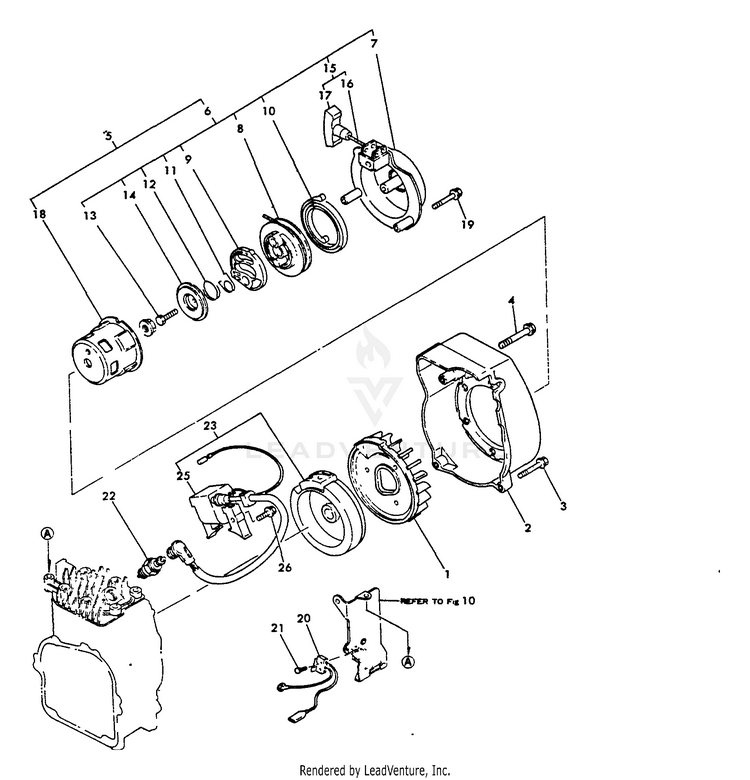

Fan Case, Starter, Flywheel

...
...
1
FAN ECH-Y16056445010
...
2
COVER, FAN ECH-Y16056745110
...
3
BOLT - 6x30 ECH-Y26476060252
...
4
BOLT - 6x40 ECH-Y26476060402
...
5
STARTER ASSY ECH-Y16056776050
...
6
RECOIL ASSY ECH-Y16056776250
...
7
STARTER CASE ASSY ECH-Y16056776510
...
8
PULLEY ECH-Y16066776520
...
9
RATCHET ECH-Y16066776530
...
10
SPRING ECH-Y16066776540
...
11
SPRING, RETURN ECH-Y16066776550
...
12
SPRING, FRICTION ECH-Y16066776560
...
13
BOLT ECH-Y16066776570
...
14
PLATE, FRICTION ECH-Y16066776580
...
15
STARTER ROPE ASSY ECH-Y16066776610
...
16
ROPE, STARTER ECH-Y16066776620
...
17
KNOB, STARTER ECH-Y16066776630
...
18
PULLEY, STARTER ECH-Y16056776590
...
19
BOLT - 6x35 - PLATED ECH-Y26106060352
...
20
SWITCH, STOP ECH-Y16066777250
...
21
SCREW - 2x10 - TAPPING ECH-Y22857200100
...
22
SPARK PLUG - BPM-8Y ECH-Y16052078010
...
23
FLYWHEEL MAGNETO ECH-Y16056778060
...
25
IGNITER ECH-Y16056778510
...
26
BOLT - 6x20 ECH-Y26476060202
...
...
...
...
...
