Echo EG-550 Electric Generator

Model: EG-550

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

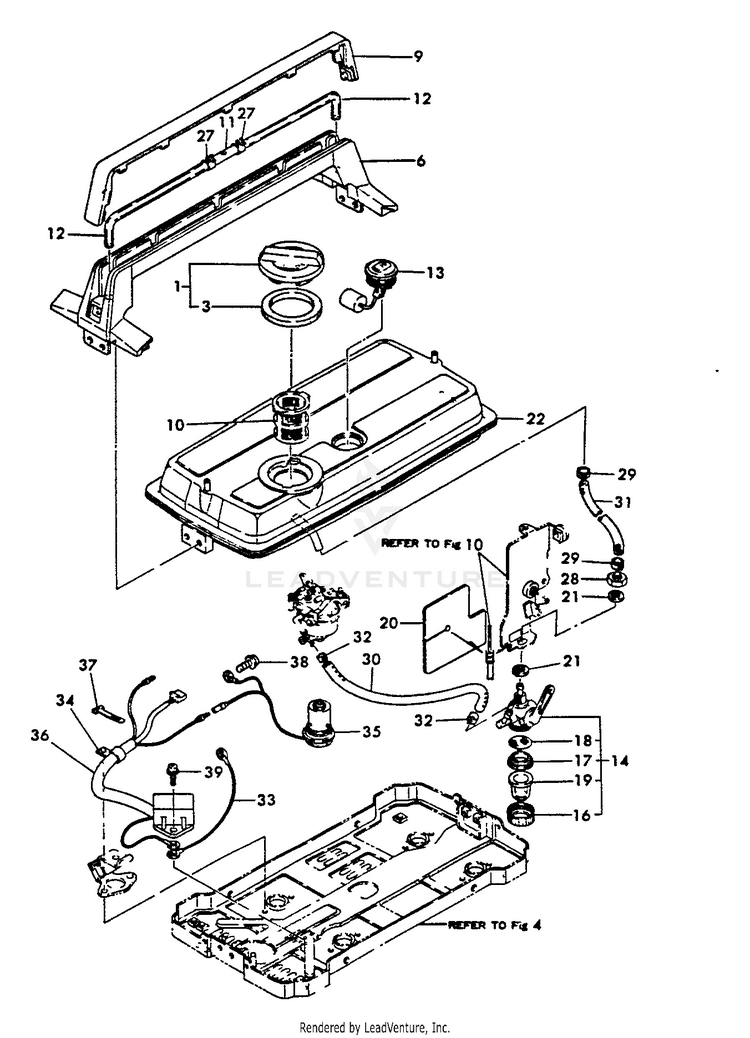

F.O. TANK, F.O. PIPE, OIL SENSOR

...
...
1
CAP ASSY, FUEL TANK ECH-Y18321055030
...
3
GASKET, CAP ECH-Y18321055090
...
6
GRIP ASSY, FUEL TANK ECH-Y18321055051
...
9
CAP, GRIP ECH-Y18321055801
...
10
FILTER, FUEL ECH-Y18321055110
...
11
JOINT ECH-Y18321055130
...
12
HOSE ECH-Y18321055140
...
13
GAUGE, FUEL ECH-Y18311055150
...
14
COCK ASSY, FUEL ECH-Y18321055300
...
16
RETAINER ECH-Y16071055360
...
17
GASKET ECH-Y16071055370
...
18
FILTER, FUEL ECH-Y16021055380
...
19
BOWL, STRAINER ECH-Y16071055390
...
20
COVER ECH-Y18311055400
...
21
GASKET ECH-Y18311055410
...
22
TANK ASSY, FUEL ECH-Y78311055730
...
27
CLAMP ECH-Y18321055650
...
28
LOCKNUT - 12 ECH-Y26777120002
...
29
CLAMP, HOSE ECH-Y10699044660
...
30
PIPE, FUEL ECH-Y16066759360
...
31
PIPE, FUEL ECH-Y16087059360
...
32
CLAMP, HOSE - 10 ECH-Y12406077680
...
33
WIRE A ECH-Y16066778210
...
34
CLAMP ECH-Y16026078700
...
35
SENSOR, OIL LEVEL ECH-Y16066778800
...
36
UNIT, OIL SENSOR ECH-Y16066778810
...
37
CLAMP ECH-Y16037078950
...
38
SCREW 6x12 ECH-Y26022060122
...
39
SCREW 6x12 ECH-Y26022060122
...
...
...
...
...
