Echo EG-550 Electric Generator

Model: EG-550

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

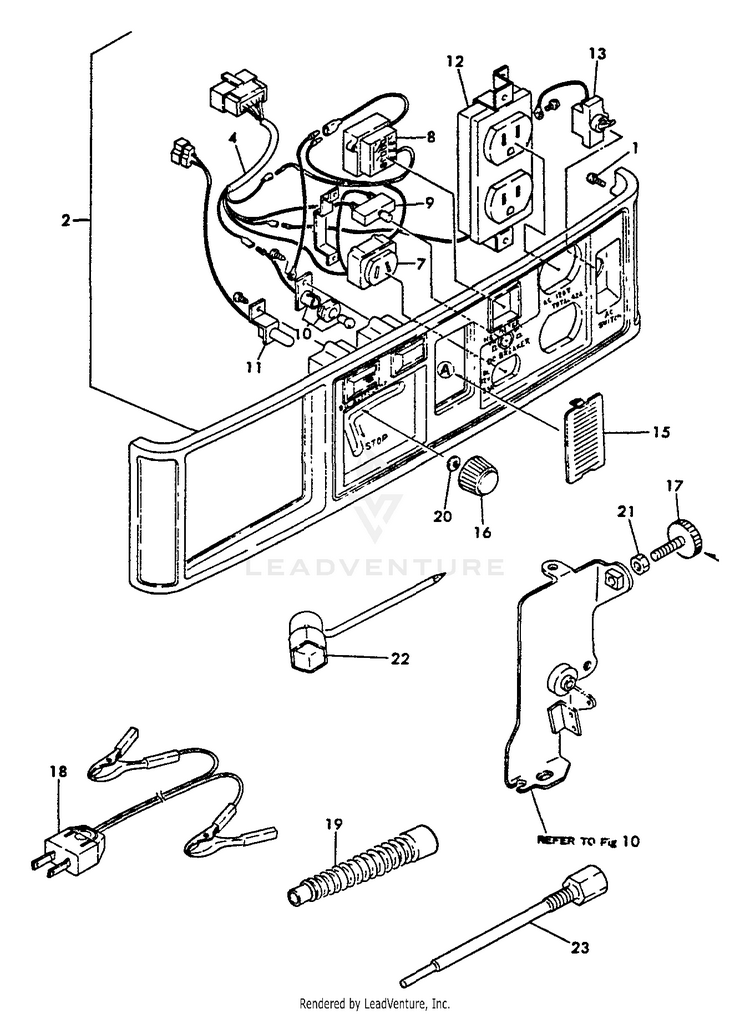

PANEL, TOOLS

...
...
1
SCREW - 4x8 ECH-Y16061004260
...
2
PANEL BOARD ASSY ECH-Y78311091060
...
4
HARNESS, WIRE ECH-Y18311091120
...
7
PLUG SOCKET 15A ECH-Y18372091250
...
8
FREQUENCY METER ECH-Y18321091320
...
9
DC PROTECTOR ECH-Y18321091340
...
10
LAMP, PILOT ECH-Y18321091350
...
11
LAMP, OIL ALERT ECH-Y18321091360
...
12
AC RECEPTACLE ECH-Y18321091380
...
13
AC BREAKER ECH-Y18311091390
...
15
BLIND COVER ECH-Y18321091090
...
16
KNOB ECH-Y18321091210
...
17
SCREW, ADJUSTER ECH-Y18321091250
...
18
CABLE ECH-Y18321091880
...
19
OIL FUNNEL ECH-Y18321091890
...
20
WASHER 4 ECH-Y22287040000
...
21
LOCKNUT - 6 - PLATED ECH-Y26757060002
...
22
BOX SPANNER ECH-Y16066792700
...
23
BOX SPANNER ECH-Y18311092550
...
...
...
...
...
