Echo EG-4300E Electric Generator

Model: EG-4300E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

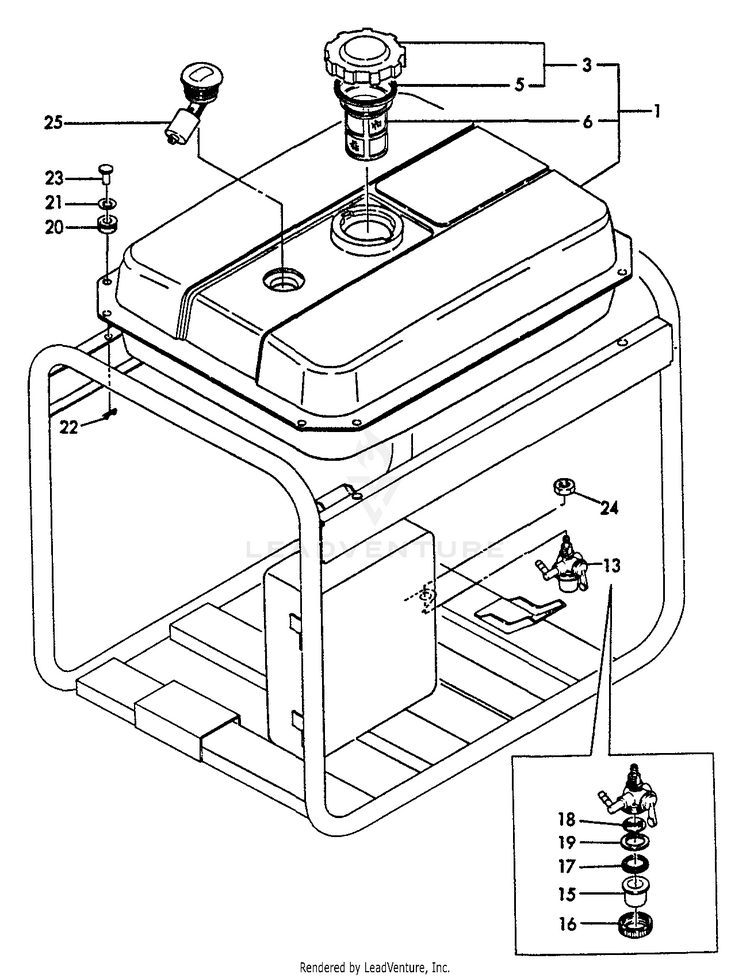

Fuel Tank

...
...
1
TANK ASSY, FUEL ECH-Y78392055721
...
3
CAP ASSY ECH-Y16064255060
...
5
GASKET ECH-Y16039355050
...
6
STRAINER, FUEL ECH-Y16071055100
...
13
FUEL COCK ASSY ECH-Y16087055301
...
15
BOWL, STRAINER ECH-Y16071055390
...
16
RETAINER ECH-Y16071055360
...
17
GASKET ECH-Y16071055370
...
18
FILTER, FUEL ECH-Y16071055380
...
19
PLATE ECH-Y16069255421
...
20
GROMMET ECH-Y18372055210
...
21
WASHER ECH-Y18335055130
...
22
PIN - 6 - SNAP ECH-Y22360060000
...
23
PIN M6x14 ECH-Y18335055120
...
24
LOCKNUT - 12 ECH-Y26777120002
...
25
GAUGE, FUEL ECH-Y18392555150
...
...
...
...
...
