Echo EG-4300E Electric Generator

Model: EG-4300E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

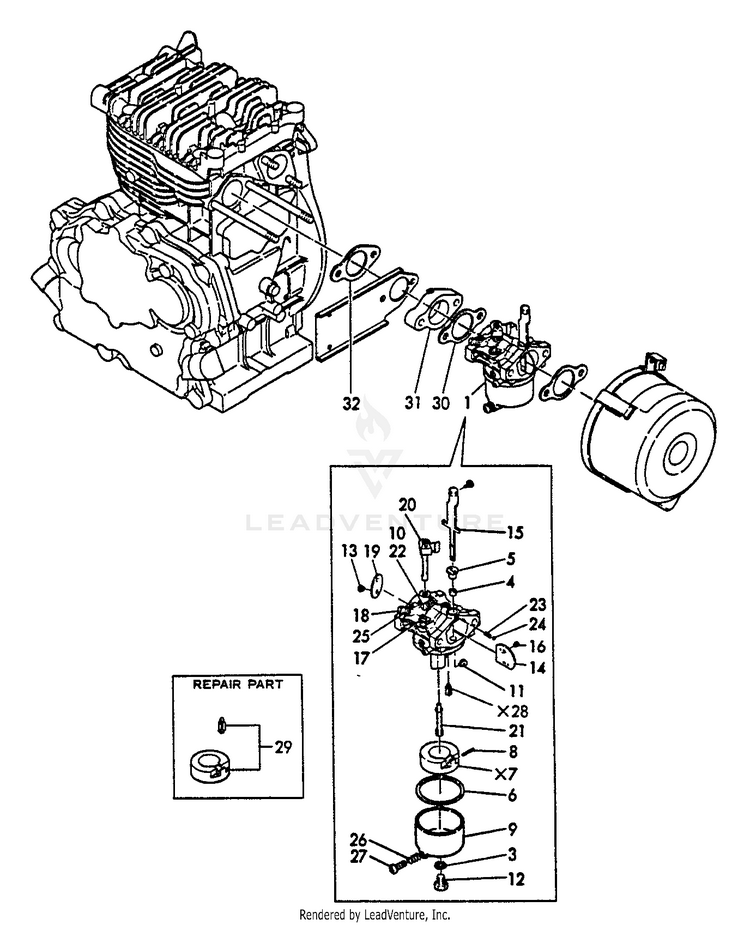

Carburetor

...
...
1
CARBURETOR ECH-Y16097056020
...
3
WASHER ECH-Y16091056550
...
4
RING, CHOKE SHAFT ECH-Y16081056580
...
5
RING, CHOKE LEVER ECH-Y16081056590
...
6
GASKET ECH-Y16021056610
...
7
FLOAT ECH-Y16081056620
...
8
PIN ECH-Y16061056631
...
9
BODY ECH-Y16081056640
...
10
SPRING ECH-Y18123056380
...
11
JET, MAIN ECH-Y16091056650
...
12
BOLT ECH-Y16091056660
...
13
SCREW ECH-Y16081056670
...
14
VALVE, CHOKE ECH-Y16091056680
...
15
CARBURETOR ECH-Y16097056020
...
16
SPRING ECH-Y16071056710
...
17
JET, PILOT ECH-Y16091056740
...
18
SCREW ECH-Y16091056750
...
19
VALVE, THROTTLE ECH-Y16091056760
...
20
SHAFT ASSY, THROTTLE ECH-Y16097056770
...
21
NOZZLE, MAIN ECH-Y16091056800
...
22
SCREW ECH-Y16091056850
...
23
SPRING, CHOKE ECH-Y16031056980
...
24
BALL, CHOKE ECH-Y16031056990
...
25
SPRING ECH-Y18123056380
...
26
SPRING ECH-Y18123056380
...
27
SCREW ECH-Y16061056900
...
28
NEEDLE ECH-Y16091056730
...
29
NEEDLE ASSY (RUBBER) ECH-Y16091056250
...
30
GASKET, INTAKE ECH-Y16091056150
...
31
INSULATOR ECH-Y16091056160
...
32
GASKET ECH-Y16091056170
...
...
...
...
...
