Echo EG-4300 S/N: 00846 - 99999 Electric Generator

Model: EG-4300 S/N: 00846 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

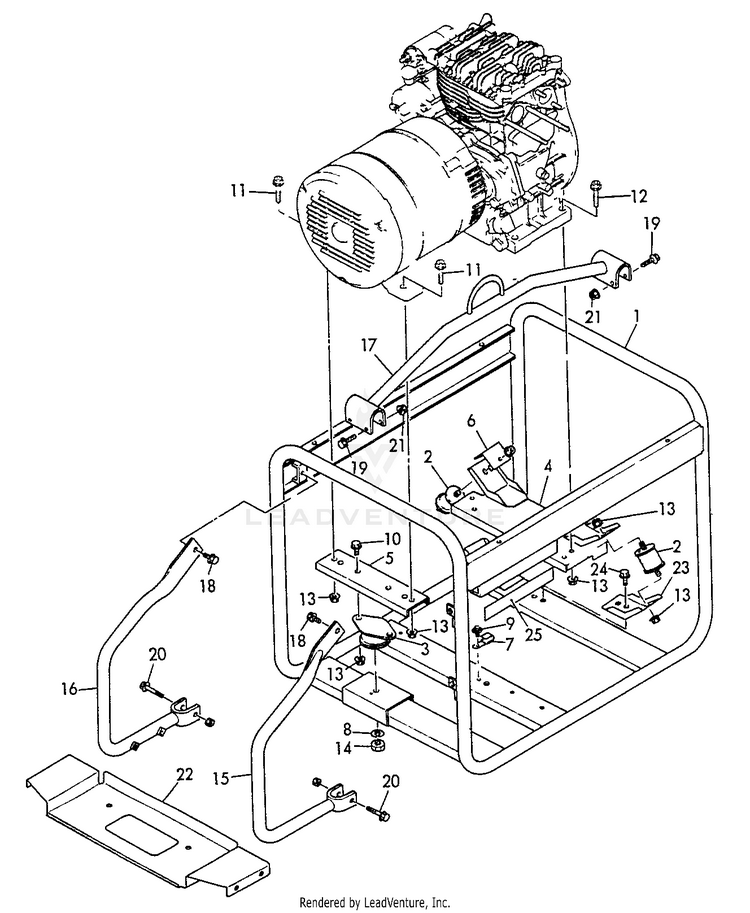

Frame

...
...
1
FRAME ECH-Y18392008110
...
2
DAMPER, FRONT ECH-Y18392008210
...
3
DAMPER, REAR ECH-Y18392008220
...
4
STAY, DAMPER ECH-Y18392008230
...
5
STAY, REAR DAMPER ECH-Y18372008250
...
6
COVER, DAMPER ECH-Y18392008260
...
7
CLAMP ECH-Y16071078710
...
8
LOCKWASHER - 10 ECH-Y22217100000
...
9
BOLT - 6x8 - PLATED ECH-Y26106060082
...
10
BOLT - 8x20 - PLATED ECH-Y26106080202
...
11
BOLT - 8x30 - PLATED ECH-Y26106080302
...
12
BOLT - 8x38 - PLATED ECH-Y26106080382
...
13
U-NUT M8 ECH-Y26366080002
...
14
NUT - 10 ECH-Y26716100002
...
15
SIDE FRAME, RIGHT ECH-Y18392508200
...
16
SIDE FRAME, LEFT ECH-Y18392508210
...
17
HOOK ECH-Y18392008400
...
18
BOLT - 6x12 - PLATED ECH-Y26106060122
...
19
BOLT - 6x30 ECH-Y26106060302
...
20
BOLT - 6x40 ECH-Y26106060402
...
21
U-NUT M6 ECH-Y26366060002
...
22
BRACKET, BATTERY ECH-Y18392508220
...
23
DAMPER STAY, LOWER ECH-Y18362108260
...
24
BOLT - 8x16 - PLATED ECH-Y26106080162
...
25
SHEET, FRAME ECH-Y18382507910
...
...
...
...
...
