Echo EG-4300 S/N: 00846 - 99999 Electric Generator

Model: EG-4300 S/N: 00846 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

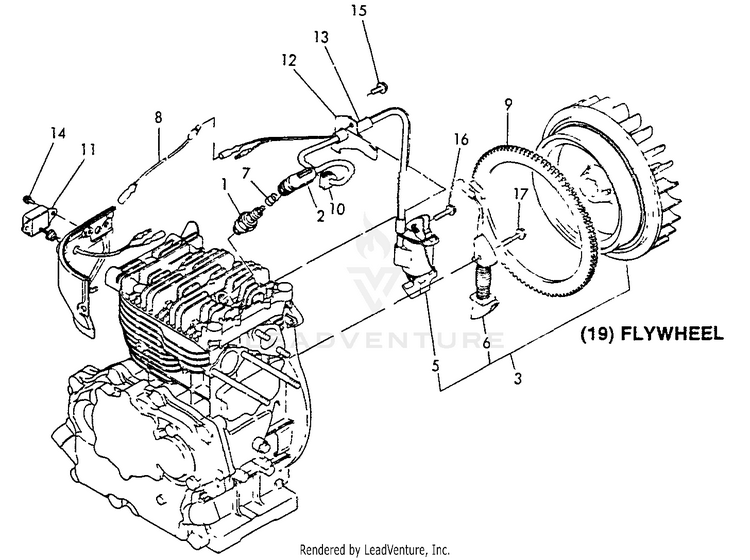

Flywheel

...
...
1
SPARK PLUG ECH-Y16023278010
...
2
CAP, PLUG ECH-Y16070078040
...
3
FLYWHEEL W/MAGNET ECH-Y16094078070
...
5
COIL, IGNITION ECH-Y16084078510
...
6
COIL, CHARGE ECH-Y16073078620
...
7
TERMINAL, SPARK PLUG CAP ECH-Y16070078050
...
8
WIRE ECH-Y16082078200
...
9
GEAR, RING ECH-Y16094078400
...
10
GROMMET ECH-Y16070078720
...
11
IGNITER ECH-Y16081078650
...
12
CLAMP ECH-Y16091078790
...
13
TUBE, INSULATOR ECH-Y16091078810
...
14
SCREW - 5x10 ECH-Y26023050102
...
15
BOLT - 6x8 - PLATED ECH-Y26476060142
...
16
BOLT - 6x30 ECH-Y26476060252
...
17
BOLT - 6x30 ECH-Y26476060302
...
...
...
...
...
