Echo EG-4300 S/N: 00846 - 99999 Electric Generator

Model: EG-4300 S/N: 00846 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

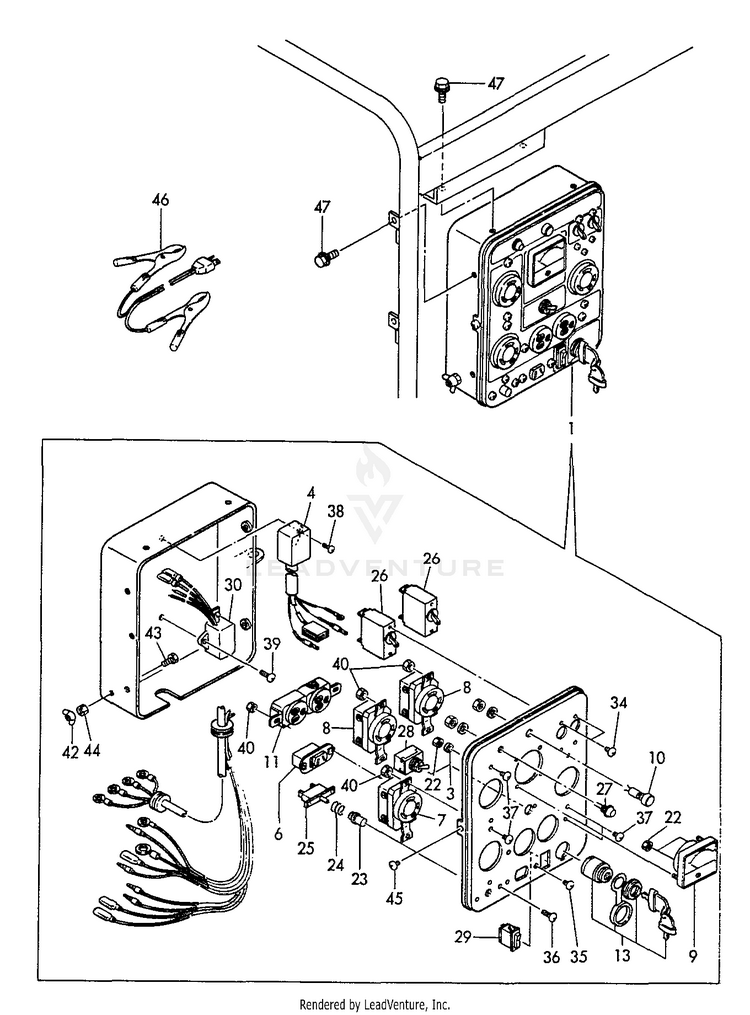

Panel

...
...
1
PANEL BOX ASSY ECH-Y18392591060
...
3
WASHER, DECOMP. ECH-Y16066414570
...
4
SENSOR UNIT, OIL ECH-Y16087078810
...
6
DC CONNECT ECH-Y18382591250
...
7
CONNECT ECH-Y18366091260
...
8
CONNECT ECH-Y18366091270
...
9
METER, VOLTAGE - 300V ECH-Y18382091270
...
10
LAMP, PILOT ECH-Y18382091310
...
11
AC CONNECT ECH-Y18392091320
...
13
SWITCH ASSY, KEY ECH-Y18392091450
...
22
NUT - 3 ECH-Y18392591990
...
23
CAP, BREAKER ECH-Y18300096310
...
24
SPRING BREAKER ECH-Y18300096320
...
25
BREAKER ECH-Y18300096330
...
26
AC BREAKER ECH-Y18300096400
...
27
LAMP, OIL ALERT ECH-Y18300097130
...
28
SWITCH ECH-Y18300097420
...
29
SWITCH ECH-Y18300097440
...
30
UNIT, SLOW-DOWN ECH-Y18300097900
...
34
SCREW - 3x6 ECH-Y26557030062
...
35
SCREW - 3x6 ECH-Y26557030062
...
36
SCREW 3x12 ECH-Y26557030122
...
37
SCREW - 4x6 ECH-Y26557040062
...
38
SCREW - 5x10 ECH-Y26557050102
...
39
SCREW - 5x10 ECH-Y26557050102
...
40
NUT - 4 ECH-Y26757040002
...
42
WINGNUT - 6 ECH-Y18362108810
...
43
BOLT - 6x16 - PLATED ECH-Y26113060162
...
44
LOCKNUT - 6 - PLATED ECH-Y26753060002
...
45
SCREW - 4x6 ECH-Y26557040062
...
46
CABLE ECH-Y18321091880
...
47
BOLT - 6x8 - PLATED ECH-Y26106060082
...
...
...
...
...
