Echo EG-3500 S/N: EG-190628-A0000001 - 190628-A9999999 Generator

Model: EG-3500 S/N:EG-190628-A0000001--190628-A9*

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

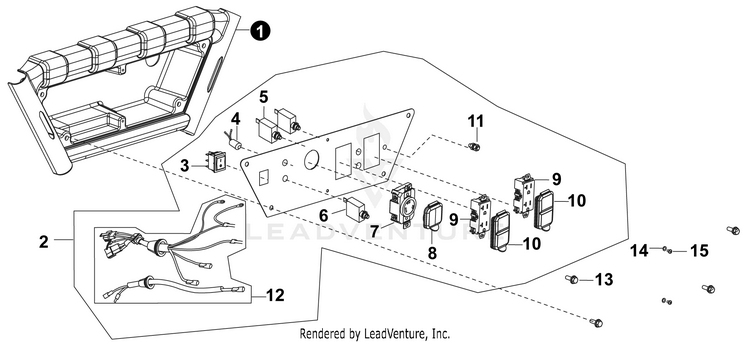

Control Panel Assembly

...
...
1
SEAT, PANEL ECH-YH479000330
...
2
PANEL, CONTROL Includes Items 3- 12 ECH-YH479000320
...
3
SWITCH, ON/OFF ECH-YH321000040
...
4
LIGHT, LOW OIL INDICATOR ECH-YH310000010
...
5
BREAKER, AC ECH-YH318000020
...
6
BREAKER, AC ECH-YH318000010
...
7
SOCKET, 120V TWISTLOCK ECH-YH304000060
...
8
COVER, TWISTLOCK ECH-YH479000340
...
9
SOCKET, 120V POWER ECH-YH304000070
...
10
COVER, SOCKET ECH-YH479000350
...
11
TERMINAL, GROUND BOLT ECH-YH304000080
...
12
HARNESS SET, WIRING ECH-YH601000010
...
13
BOLT ECH-YH435000220
...
14
WASHER, FLAT ECH-YH451000010
...
15
BOLT ECH-YH435000230
...
...
...
...
...
