Echo EG-3500 S/N: EG-190628-A0000001 - 190628-A9999999 Generator

Model: EG-3500 S/N:EG-190628-A0000001--190628-A9*

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

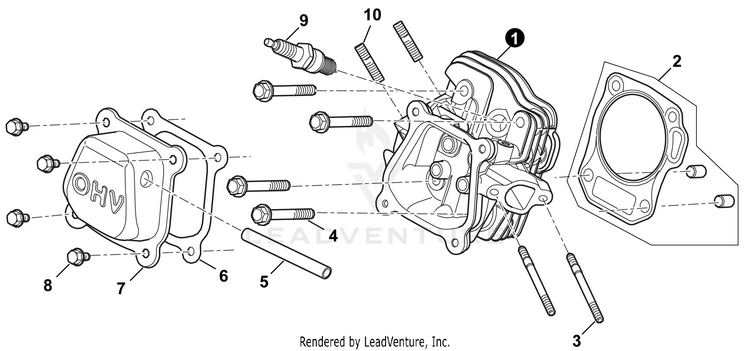

Cylinder Head Components

...
...
1
HEAD, CYLINDER ECH-YH458000100
...
2
GASKET, CYLINDER HEAD ECH-YH468000300
...
3
STUD ECH-YH452000070
...
4
BOLT, CYLINDER HEAD ECH-YH435000170
...
5
TUBE, BREATHER ECH-YH467000130
...
6
GASKET, VALVE COVER ECH-YH468000310
...
7
COVER, VALVE ECH-YH458000090
...
8
BOLT ECH-YH435000140
...
9
PLUG, SPARK (BPR6ES) ECH-YH461000290
...
10
BOLT ECH-YH452000080
...
...
...
...
...
