Echo EG-3500 S/N: EG-190628-A0000001 - 190628-A9999999 Generator

Model: EG-3500 S/N:EG-190628-A0000001--190628-A9*

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

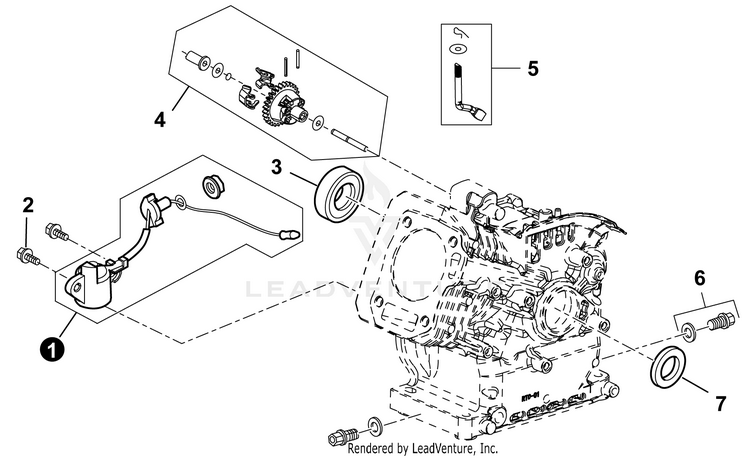

Crankcase Components

...
...
1
SENSOR, ENGINE OIL ECH-YH327000020
...
2
BOLT ECH-YH435000070
...
3
BEARING, CRANKSHAFT ECH-YH453000020
...
4
GEAR ASSY., GOVERNOR ECH-YH458000230
...
5
ARM, GOVERNOR ECH-YH470000120
...
6
PLUG, OIL DRAIN ECH-YH468000270
...
7
SEAL, OIL ECH-YH468000280
...
...
...
...
...
