Echo EG-3500 S/N: 02738 - 99999 Electric Generator

Model: EG-3500 S/N: 02738 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

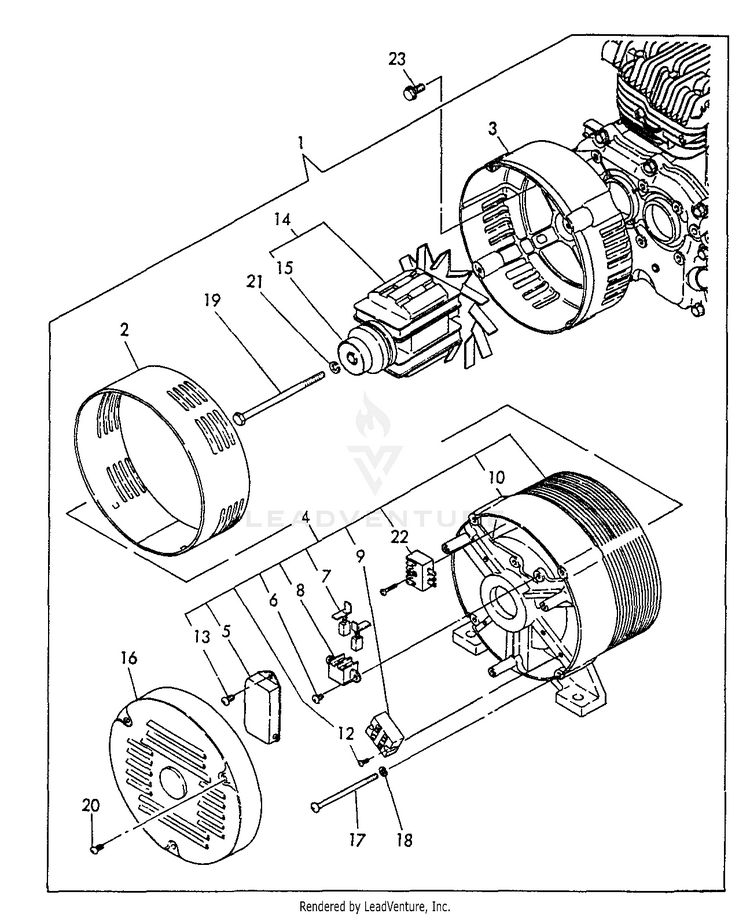

Generator

...
...
1
GENERATOR 3.0 KVA ECH-Y18382074060
...
2
CLAMP ECH-Y18382074140
...
3
COVER, FRONT ECH-Y18382074150
...
4
STATOR ASSY ECH-Y18382074710
...
5
A.V.R. ECH-Y18382074170
...
6
SCREW - 5x14 ECH-Y18382074300
...
7
BRUSH ECH-Y18382074220
...
8
HOLDER, BRUSH ECH-Y18382074240
...
9
TERMINAL ECH-Y18382074270
...
10
COVER - REAR ECH-Y18382074260
...
12
SCREW - 5x14 ECH-Y18382074300
...
13
SCREW - 4x14 ECH-Y18335074380
...
14
ROTOR ASSY ECH-Y18382074350
...
15
BEARING, BALL ECH-Y18382074360
...
16
COVER, END ECH-Y18382074450
...
17
BOLT, THROUGH ECH-Y18382074410
...
18
LOCKWASHER - 6 ECH-Y22217060000
...
19
BOLT ECH-Y18382074430
...
20
SCREW - 4x8 ECH-Y18352091290
...
21
LOCKWASHER - 10 ECH-Y22217100000
...
22
RECTIFIER ECH-Y18321074470
...
23
BOLT - 8x20 - PLATED ECH-Y26106080202
...
...
...
...
...
