Echo EG-3500 S/N: 02738 - 99999 Electric Generator

Model: EG-3500 S/N: 02738 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

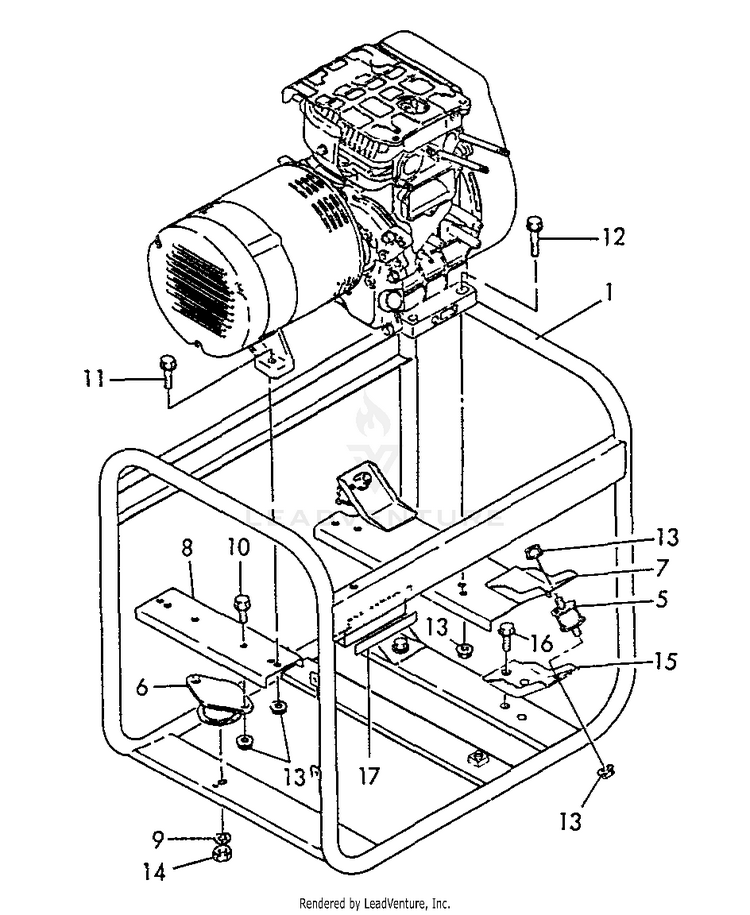

Frame

...
...
1
FRAME ASSY ECH-Y78382008721
...
5
DAMPER, FRONT ECH-Y18392008210
...
6
DAMPER, REAR ECH-Y18372008220
...
7
STAY, DAMPER ECH-Y18392008230
...
8
STAY, REAR DAMPER ECH-Y18372008250
...
9
LOCKWASHER - 10 ECH-Y22217100000
...
10
BOLT - 8x20 - PLATED ECH-Y26106080202
...
11
BOLT - 8x30 - PLATED ECH-Y26106080302
...
12
BOLT - 8x38 - PLATED ECH-Y26106080382
...
13
U-NUT M8 ECH-Y26366080002
...
14
NUT - 10 ECH-Y26716100002
...
15
DAMPER STAY, LOWER ECH-Y18362108260
...
16
BOLT - 8x16 - PLATED ECH-Y26106080162
...
17
SHEET, FRAME ECH-Y18382507910
...
...
...
...
...
