Echo EG-3500 S/N: 02738 - 99999 Electric Generator

Model: EG-3500 S/N: 02738 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

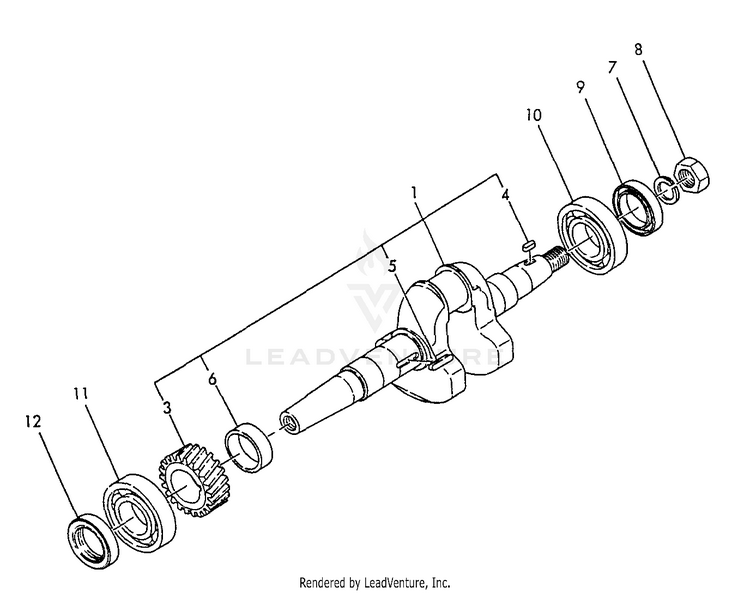

Crankshaft, Main Bearing

...
...
1
CRANKSHAFT ASSY ECH-Y76087021700
...
3
GEAR, CRANKSHAFT ECH-Y16081021200
...
4
KEY - 4x10 ECH-Y16061021290
...
5
KEY 4x24 ECH-Y16081021290
...
6
SPACER, GEAR ECH-Y16088021610
...
7
LOCKWASHER - 10 ECH-Y22217160000
...
8
NUT - 16 ECH-Y26736160002
...
9
SEAL, OIL ECH-Y16021002220
...
10
BEARING, BALL ECH-Y24101062050
...
11
BEARING, BALL 6206C4 ECH-Y24101062060
...
12
SEAL, OIL ECH-Y10122002220
...
...
...
...
...
