Echo EG-3500 S/N: 02738 - 99999 Electric Generator

Model: EG-3500 S/N: 02738 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

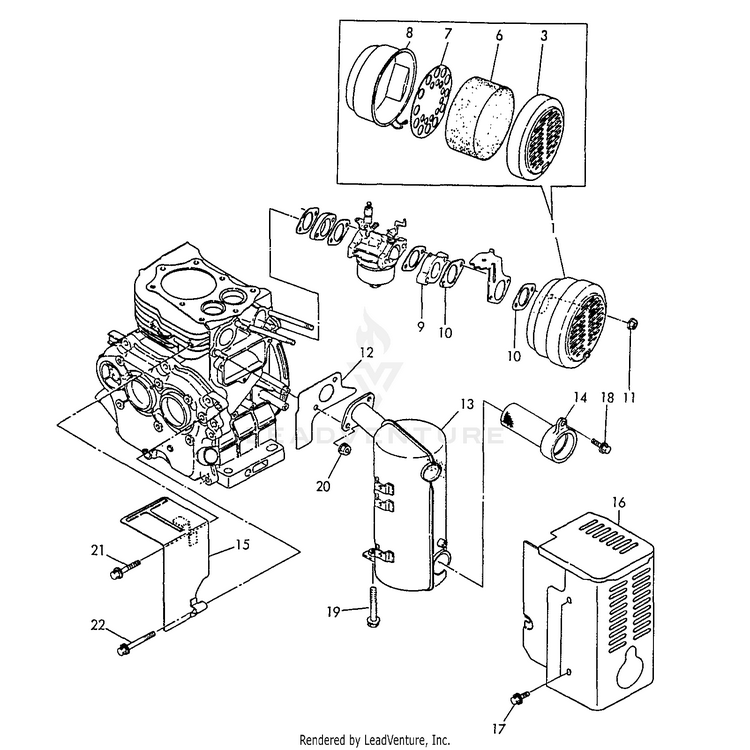

Intake, Exhaust, Air Cleaner

...
...
1
CLEANER ASSY, AIR ECH-Y76081012560
...
3
CASE, AIR FILTER ECH-Y76081012540
...
6
FILTER, AIR ECH-Y16081012540
...
7
HOLDER, ELEMENT ECH-Y16081012550
...
8
CAP, AIR FILTER ECH-Y16081012730
...
9
SPACER ECH-Y16081012880
...
10
GASKET ECH-Y16081056150
...
11
U-NUT M6 ECH-Y26366060002
...
12
GASKET, EXHAUST ECH-Y16081013200
...
13
MUFFLER ECH-Y16087013570
...
14
SCREEN, SPARK ARRESTER ECH-Y16087013650
...
15
PLATE, GUIDE ECH-Y16087013730
...
16
COVER, MUFFLER ECH-Y16087013820
...
17
BOLT - 6x8 - PLATED ECH-Y26106060082
...
18
BOLT - 6x10 - PLATED ECH-Y26106060102
...
19
BOLT - 8x30 - PLATED ECH-Y26106080302
...
20
U-NUT M8 ECH-Y26366080002
...
21
BOLT - 6x8 - PLATED ECH-Y26476060142
...
22
BOLT - 6x30 ECH-Y26476060302
...
...
...
...
...
