Echo EG-3500 S/N: 02738 - 99999 Electric Generator

Model: EG-3500 S/N: 02738 - 99999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

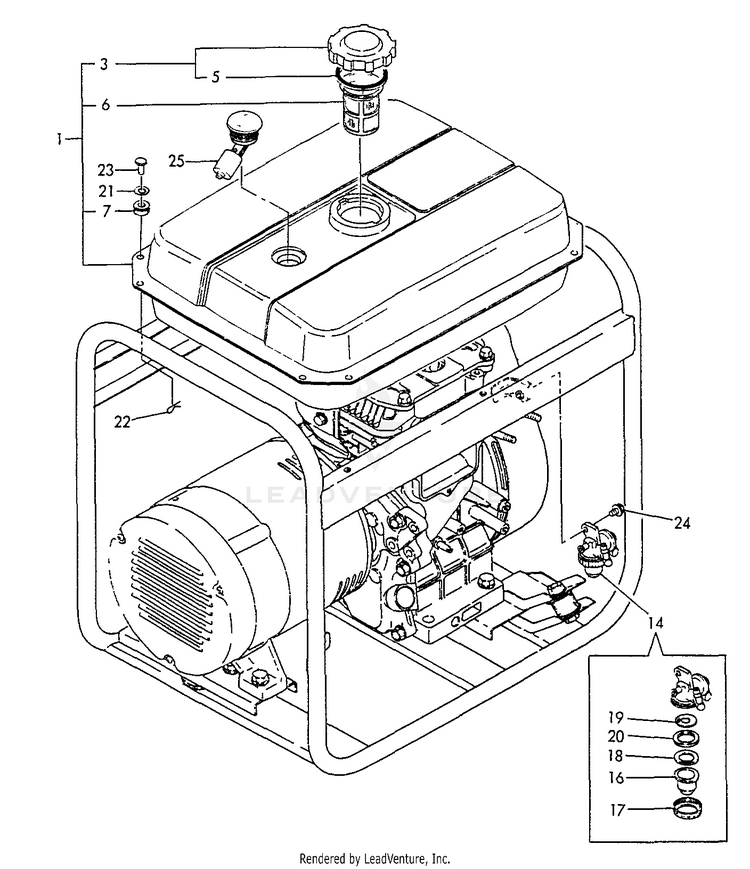

product name

Fuel Tank

...
...
1
TANK ASSY, FUEL ECH-Y78382055731
...
3
CAP ASSY ECH-Y16064255060
...
5
GASKET ECH-Y16039355050
...
6
STRAINER, FUEL ECH-Y16071055100
...
7
GROMMET ECH-Y18372055210
...
14
COCK ASSY, FUEL ECH-Y16071055301
...
16
BOWL, STRAINER ECH-Y16071055390
...
17
RETAINER ECH-Y16071055360
...
18
GASKET ECH-Y16071055370
...
19
FILTER, FUEL ECH-Y16071055381
...
20
PLATE ECH-Y16069255421
...
21
WASHER ECH-Y18335055130
...
22
PIN - 6 - SNAP ECH-Y22360060000
...
23
PIN M6x14 ECH-Y18335055120
...
24
BOLT - 6x8 - PLATED ECH-Y26106060082
...
25
GAUGE, FUEL ECH-Y18392555150
...
...
...
...
...
