Echo EG-3500 S/N: 00000 - 02737 Electric Generator

Model: EG-3500 S/N: 00000 - 02737

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

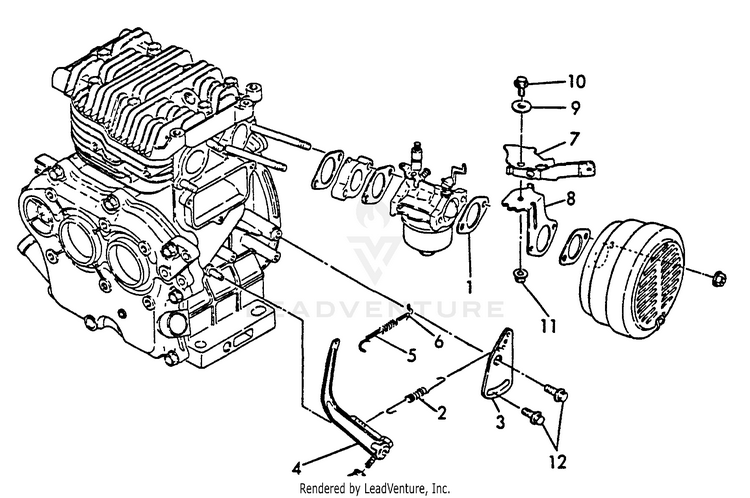

Throttle Governor, Governor Lever

...
...
1
GASKET ECH-Y16081056150
...
2
SPRING, REGULATOR ECH-Y16087066010
...
3
HANDLE, REGULATOR ECH-Y16097066120
...
4
LEVER, GOVERNOR ECH-Y16081066151
...
5
LINK, THROTTLE ECH-Y16081066200
...
6
SPRING, TENSION ECH-Y16081066210
...
7
LEVEL ASSY ECH-Y16077066300
...
8
BRACKET, LEVER ECH-Y16087066330
...
9
COLLAR ECH-Y16067066350
...
10
BOLT - 6x12 - PLATED ECH-Y26106060122
...
11
U-NUT M6 ECH-Y26366060002
...
12
BOLT - 6x8 - PLATED ECH-Y26476060142
...
...
...
...
...
