Echo EG-3500 S/N: 00000 - 02737 Electric Generator

Model: EG-3500 S/N: 00000 - 02737

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

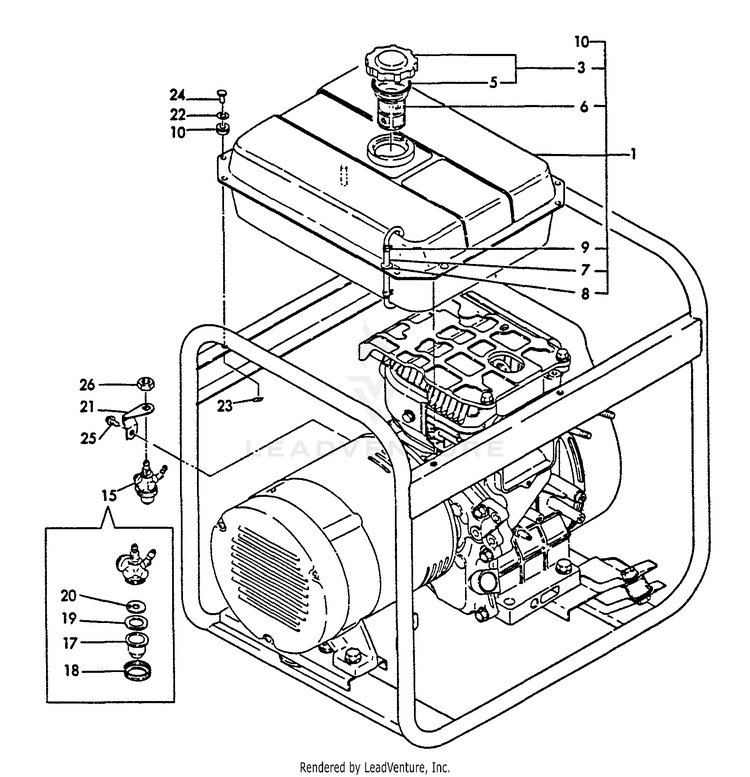

Fuel Tank

...
...
1
TANK ASSY, FUEL ECH-Y78382055730
...
3
CAP ASSY ECH-Y16071055060
...
5
GASKET ECH-Y16039355050
...
6
STRAINER, FUEL ECH-Y16071055100
...
7
PIPE, GAUGE ECH-Y16071055150
...
8
GROMMET ECH-Y18372055190
...
9
CLAMP, HOSE - 9 ECH-Y12472259050
...
10
GROMMET ECH-Y18372055210
...
15
FUEL COCK ASSY ECH-Y16087055301
...
17
BOWL, STRAINER ECH-Y16071055390
...
18
RETAINER ECH-Y16071055360
...
19
GASKET ECH-Y16071055370
...
20
FILTER, FUEL ECH-Y16021055380
...
21
STAY, COCK ECH-Y16087055350
...
22
WASHER ECH-Y16012076940
...
23
PIN - 6 - SNAP ECH-Y22360060000
...
24
PIN 6x14 ECH-Y22487060140
...
25
BOLT - 8x14 - PLATED ECH-Y26106080142
...
26
LOCKNUT - 12 ECH-Y26777120002
...
...
...
...
...
