Echo EG-3500 S/N: 00000 - 02737 Electric Generator

Model: EG-3500 S/N: 00000 - 02737

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

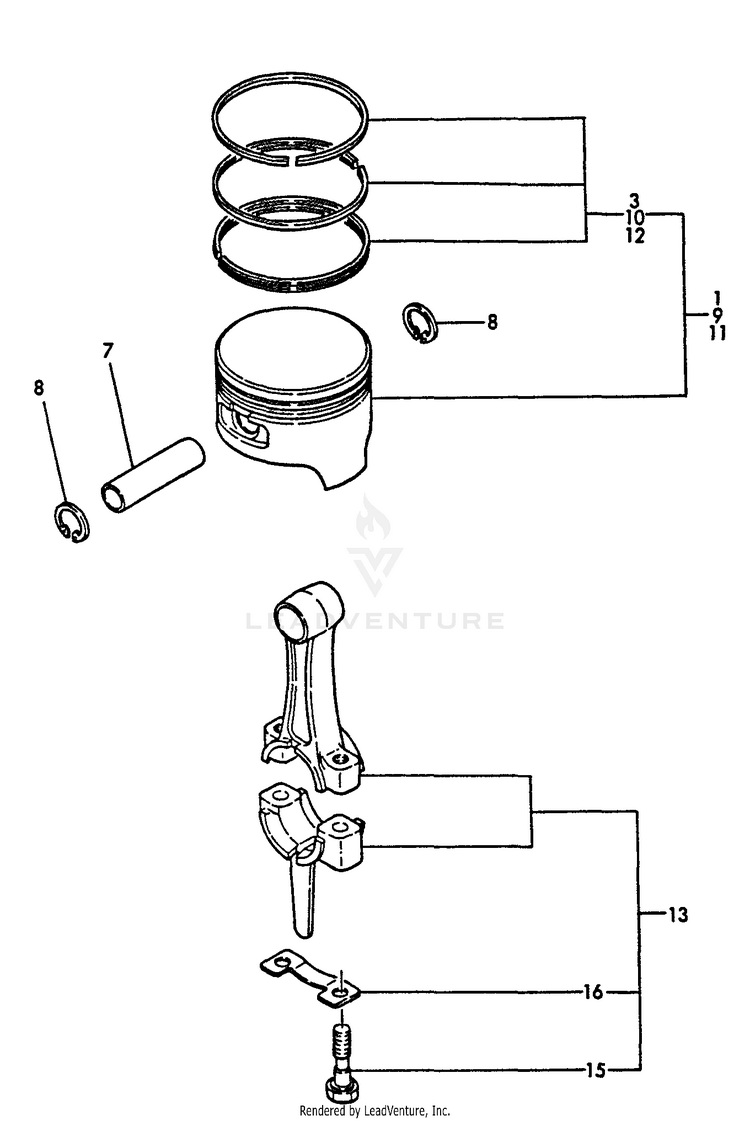

Connecting Rod, Piston

...
...
1
PISTON ASSY ECH-Y16081022011
...
3
RING, PISTON ECH-Y76081022500
...
7
PIN, PISTON ECH-Y16081022300
...
8
RING, RETAINING - 16 ECH-Y22252000160
...
9
PISTON ASSY O.S.=0.25 ECH-Y16081022470
...
10
RING, PISTON ECH-Y76081022540
...
11
PISTON ASSY O.S.=0.5 ECH-Y16081022480
...
12
RING, PISTON ECH-Y76081022550
...
13
CONNECTING ROD ASSY ECH-Y76081023100
...
15
BOLT, ROD ECH-Y16081023200
...
16
WASHER ECH-Y16081023210
...
...
...
...
...
