Echo EG-3500 S/N: 00000 - 02737 Electric Generator

Model: EG-3500 S/N: 00000 - 02737

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

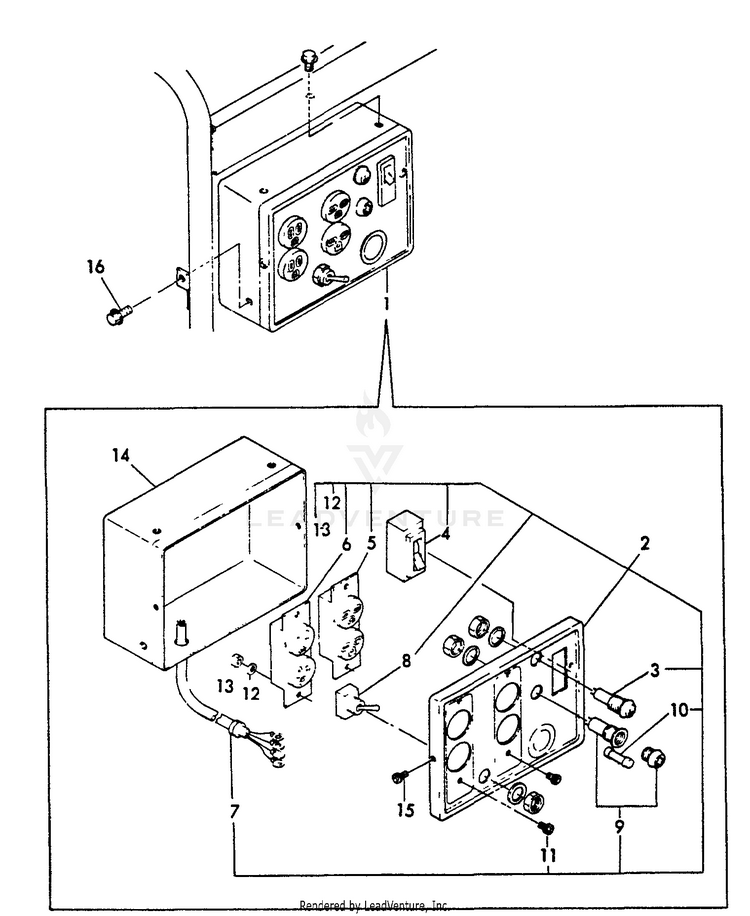

Electrical Panel

...
...
1
PANEL BOX ASSY ECH-Y18382091080
...
2
PANEL ASSY ECH-Y18382091170
...
3
LAMP, PILOT - 100V ECH-Y18382091320
...
4
BREAKER - 15A ECH-Y18382091700
...
5
AC CONNECT ECH-Y18392091320
...
6
PLUG SOCKET 240V ECH-Y18392091310
...
7
HARNESS, WIRE ECH-Y18382091390
...
8
SWITCH ECH-Y18352091750
...
9
HOLDER, FUSE ECH-Y18392091240
...
10
FUSE - 15A ECH-Y18382091570
...
11
SCREW - 4x8 ECH-Y26022040082
...
12
WASHER - 4 ECH-Y22117040000
...
13
NUT - 4 ECH-Y21727040002
...
14
BOX, PANEL ECH-Y18382091350
...
15
SCREW - 4x8 ECH-Y26022040082
...
16
BOLT - 6x8 - PLATED ECH-Y26106060082
...
...
...
...
...
